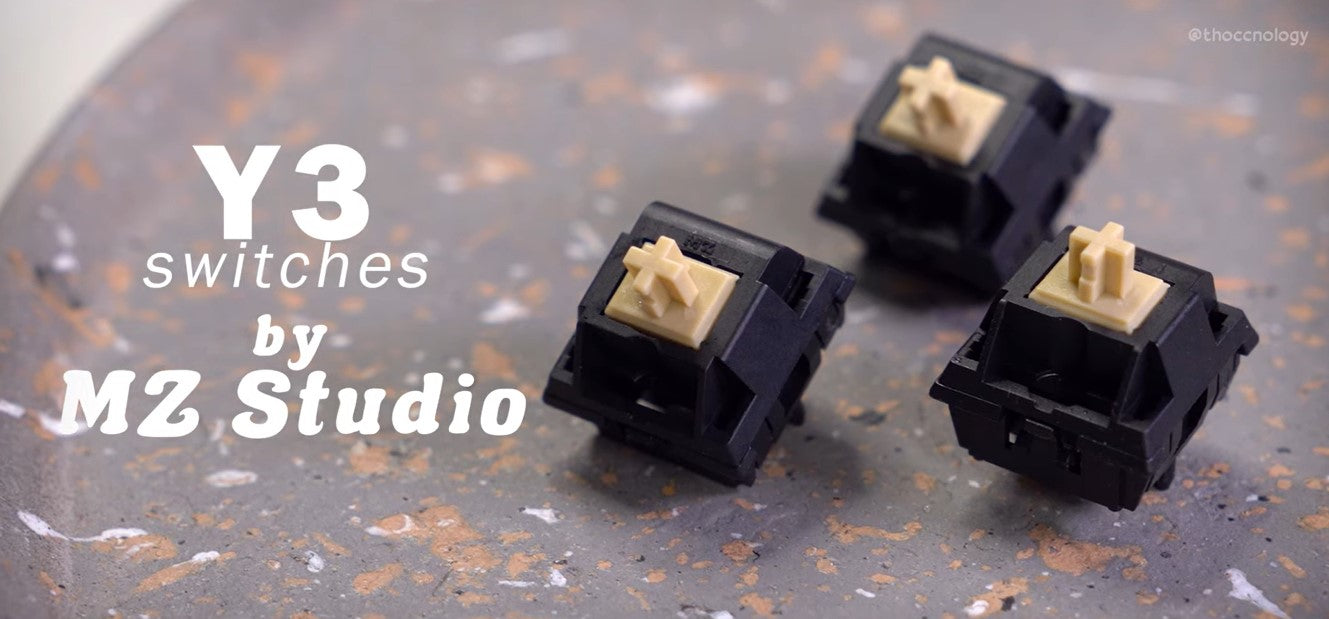

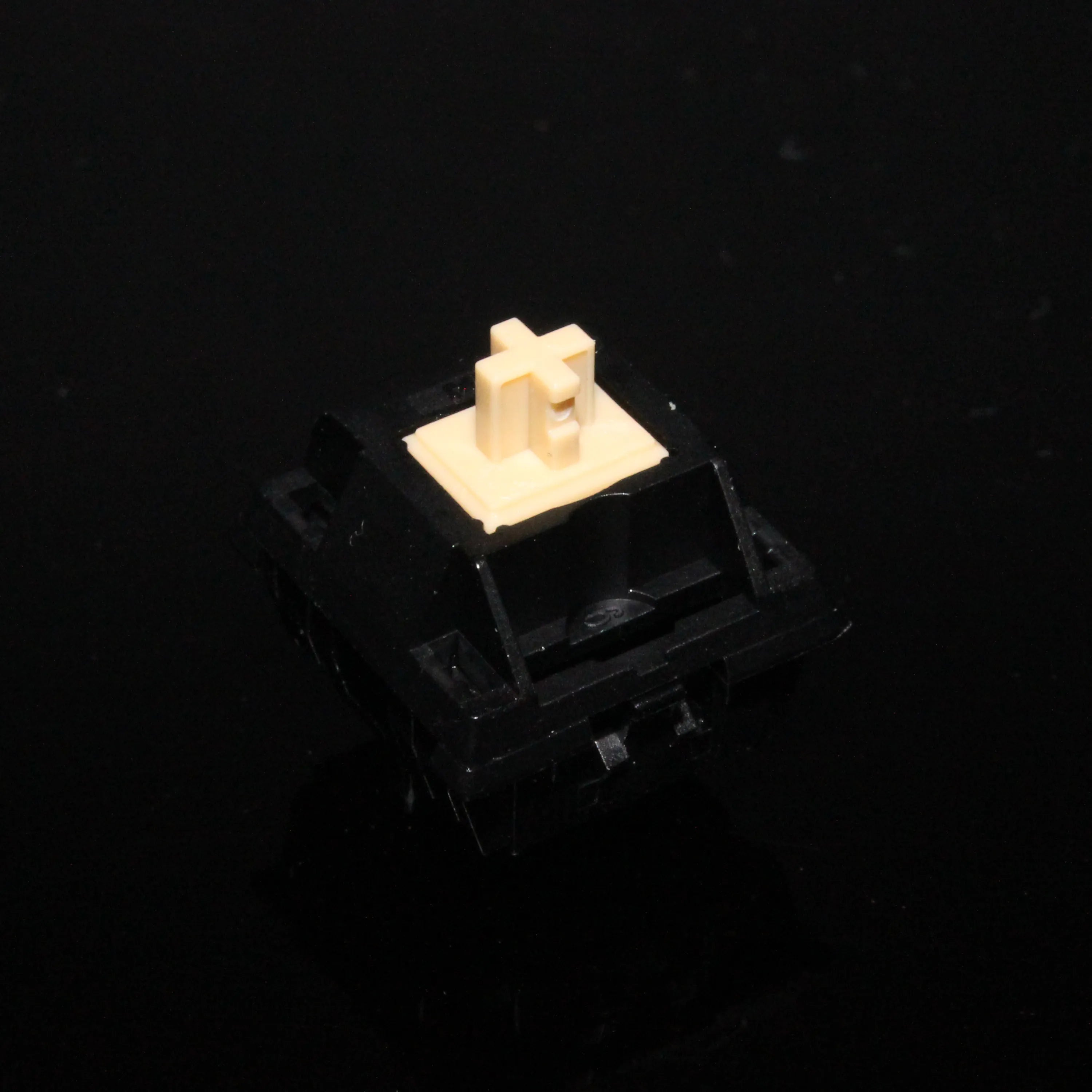

Keygeek x MZ Y3 HIFI Linear Switch
$0.30
⚫ Keygeek Y3 · Thocky Linear Virtuoso
Keygeek Y3
M3 Stem · PA66 Housing · 48g · 20mm KOS Spring · Cushioned Rebound
Smooth, deep, solid — subtle luxury without harshness | Black Sand aesthetic | Retro‑modern fusion
⚫ Deep, Cushioned Thock
⚡ 48g Balanced Actuation
🧈 M3 Stem Geometry
🏗️ Fiberglass‑Free PA66
🔄 20mm KOS Spring
🔒 5‑Pin PCB Mount
48g
Operating Force
53g
Bottom-out Force
3.8mm
Total Travel
5‑Pin
Rock‑Solid Mount
Tired of linears that sound harsh or feel plasticky?
Plastic "Ticking" Artifacts
Fiberglass‑filled housings often produce unwanted high‑frequency clicks that ruin the acoustic experience.
Harsh, Unrefined Sound
Many linears lack depth, delivering a sharp clack instead of a satisfying, rounded thock.
Jarring Bottom‑Out
Abrupt landings cause finger fatigue and disrupt the rhythm of typing.
⚫ Y3 – The Thocky Virtuoso — M3 stem geometry delivers a cushioned bottom‑out with instant rebound. Fiberglass‑free PA66 eliminates plastic "ticking," while the 20mm KOS spring provides a subtle air cushion effect with zero spring resonance.
Why Y3 Is the Epitome of Linear Luxury
🛋️ Cushioned Landing, Instant Rebound
M3 Stem Geometry – Curated Curvature for Controlled Thock
Feature The proprietary M3 stem features meticulously engineered curvature that creates a cushioned bottom‑out while delivering instant rebound. The result is a smooth, deep, and solid keystroke with a subtle air cushion effect.
Advantage Unlike harsh linears that slam into the housing, Y3 absorbs impact for a luxurious feel. The instant rebound maintains rhythm during rapid inputs, making it ideal for both gaming and typing.
Benefit Enjoy fatigue‑free typing with a sound that’s deep, warm, and never harsh. The Y3 is subtle enough for quiet environments yet satisfying enough to keep you engaged.
Evidence MZ Studio’s M3 geometry has been refined through multiple iterations, with early users praising its “cushioned landing like typing on velvet” and “zero spring resonance.”
🏛️ Fiberglass‑Free PA66
🎵 Eliminates Plastic "Ticking"
⚫ Matte Black Sand Finish
✨ Retro‑Industrial Charm
🏛️ Vintage Sound, Modern Engineering
PA66 Housing – Pure, Unadulterated Acoustic Clarity
Feature The Y3 uses fiberglass‑free PA66 for both top and bottom housings. This material choice eliminates the high‑frequency "ticking" artifacts common in fiberglass‑reinforced plastics, delivering a cleaner, warmer sound profile.
Advantage The matte black sand finish exudes understated retro‑industrial charm, while the pure PA66 construction ensures consistent acoustics across every switch.
Benefit Your keyboard sounds refined and premium, without the plasticky overtones that cheapen the experience. The aesthetic pairs perfectly with both vintage and modern builds.
Evidence MZ Studio’s material science approach prioritizes acoustic purity. Community reviews note “no annoying ticking – just pure thock” and “the black sand finish is gorgeous.”
⚙️ 20mm KOS Extended Spring · 48g → 53g Force Curve
Subtle air cushion effect, zero spring resonance⚡ Balanced, Effortless Control
48g Operating Force – The Sweet Spot for Speed and Precision
Feature 48g (±5g) operating force with a 20mm KOS extended single‑stage spring, bottoming out at 53g. Pre‑travel of 2.0mm, total travel of 3.8mm (±0.1mm).
Advantage The 20mm KOS spring delivers a subtle air cushion effect, making the keystroke feel both responsive and luxurious. Zero spring resonance ensures quiet operation.
Benefit Perfect balance for gamers who need rapid inputs and typists who want all‑day comfort. The 48g actuation is light enough to reduce fatigue but with a 53g bottom‑out that prevents accidental presses.
Evidence KOS (Korea Ornamental Steel) springs are known for their exceptional consistency and durability. Users report “the perfect weight – not too light, not too heavy.”
Key Specs at a Glance
Type
Linear (Thocky)
Linear (Thocky)
Operating Force
48 ± 5 g
48 ± 5 g
Bottom-out Force
53 ± 5 g
53 ± 5 g
Pre‑Travel
2.0 mm
2.0 mm
Total Travel
3.8 ± 0.1 mm
3.8 ± 0.1 mm
Spring
20mm KOS Extended
20mm KOS Extended
Stem Material
M3
M3
Housing
PA66 (Fiberglass‑Free)
PA66 (Fiberglass‑Free)
📋 Full Specifications
| Switch Type | Linear |
|---|---|
| Manufacturer | Keygeek |
| Designer | MZ Studio |
| Top Housing Material | PA66 with no fiberglass |
| Bottom Housing Material | PA66 with no fiberglass |
| Stem Material | M3 |
| Operating Force | 48 ± 5 g |
| Bottom-out Force | 53 ± 5 g |
| Pre-travel | 2.0 mm |
| Total Travel | 3.8 ± 0.1 mm |
| Spring | 20 mm KOS extended single-stage spring |
| Lubrication | Factory lubed |
| Pin Count | 5-pin (PCB mount) – can be clipped to 3-pin |
| SMD LED Compatibility | Fully compatible |
| Sound Profile | Deep, cushioned thock; zero plastic ticking; subtle air cushion effect |
| Compatibility | Works with any PCB compatible with Cherry‑style switches. This 5‑pin (PCB mount) switch can be clipped to 3‑pin if needed. |
💬 What the Community Says
⭐⭐⭐⭐⭐
"The Y3 is the smoothest, deepest thock I've ever experienced. The M3 stem feels like typing on a cushion, and the fiberglass‑free PA66 gives it a warm, vintage sound. Pure luxury."
— @ThockConnoisseur
⭐⭐⭐⭐⭐
"Finally a linear that's subtle without being dead. The 48g actuation is perfect for long coding sessions, and the 20mm KOS spring makes every keystroke feel intentional. Highly recommend."
— @CodeCraftsman
⭐⭐⭐⭐⭐
"The black sand aesthetic is stunning – matte and premium. The sound is exactly what I wanted: deep, solid, and no annoying plastic ticking. Best linear I've tried under $1."
— @MinimalistKeeb
🛡️ Our Promise
Free worldwide shipping on orders over $80, 30‑day hassle‑free returns, and a 1‑year warranty. If the switches are incompatible with your keyboard, we'll cover return shipping.
Fast Global Shipping
Orders ship within 24 hours, fully trackable
Shipping regions: USA, Canada, UK, Australia, Germany, France, Netherlands, Japan, South Korea, Singapore, Taiwan, Hong Kong, Switzerland, New Zealand & more.
30‑Day Easy Returns
Return for any reason; we’ll cover return shipping if compatibility is an issue
1‑year warranty covers manufacturing defects
Fast Processing
Orders are quality‑checked and shipped within 24 hours
Refunds processed within 4 weeks
❓ Frequently Asked Questions
What makes the Y3 sound so unique?▼
The combination of fiberglass‑free PA66 housing and the M3 stem geometry eliminates plastic "ticking" artifacts while delivering a deep, cushioned thock. The 20mm KOS spring adds a subtle air cushion effect, making the sound both warm and refined.
What is the M3 stem?▼
M3 is a proprietary stem material and geometry developed by MZ Studio. It features carefully engineered curvature that softens the bottom‑out while maintaining instant rebound, resulting in a smooth, cushioned keystroke that feels luxurious and controlled.
Is 48g suitable for gaming?▼
Absolutely. 48g is a balanced weight – light enough for rapid inputs but with a 53g bottom‑out that prevents accidental presses. The 20mm KOS spring provides a responsive return, making it ideal for competitive gaming.
Do I need to lube these switches?▼
No. Y3 comes factory‑lubed with precision lubrication on the stem and spring. The M3 material also provides inherent smoothness, ensuring buttery‑soft operation out of the box.
Will the 5‑pin design fit my 3‑pin hot‑swap board?▼
Yes. The two plastic positioning pins can be clipped off with flush cutters to convert to a 3‑pin switch, making it compatible with most 3‑pin hot‑swap PCBs.
What is the expected lifespan?▼
Y3 is rated for 80 million keystrokes. The durable PA66 housing, M3 stem, and KOS spring ensure consistent performance for years.
