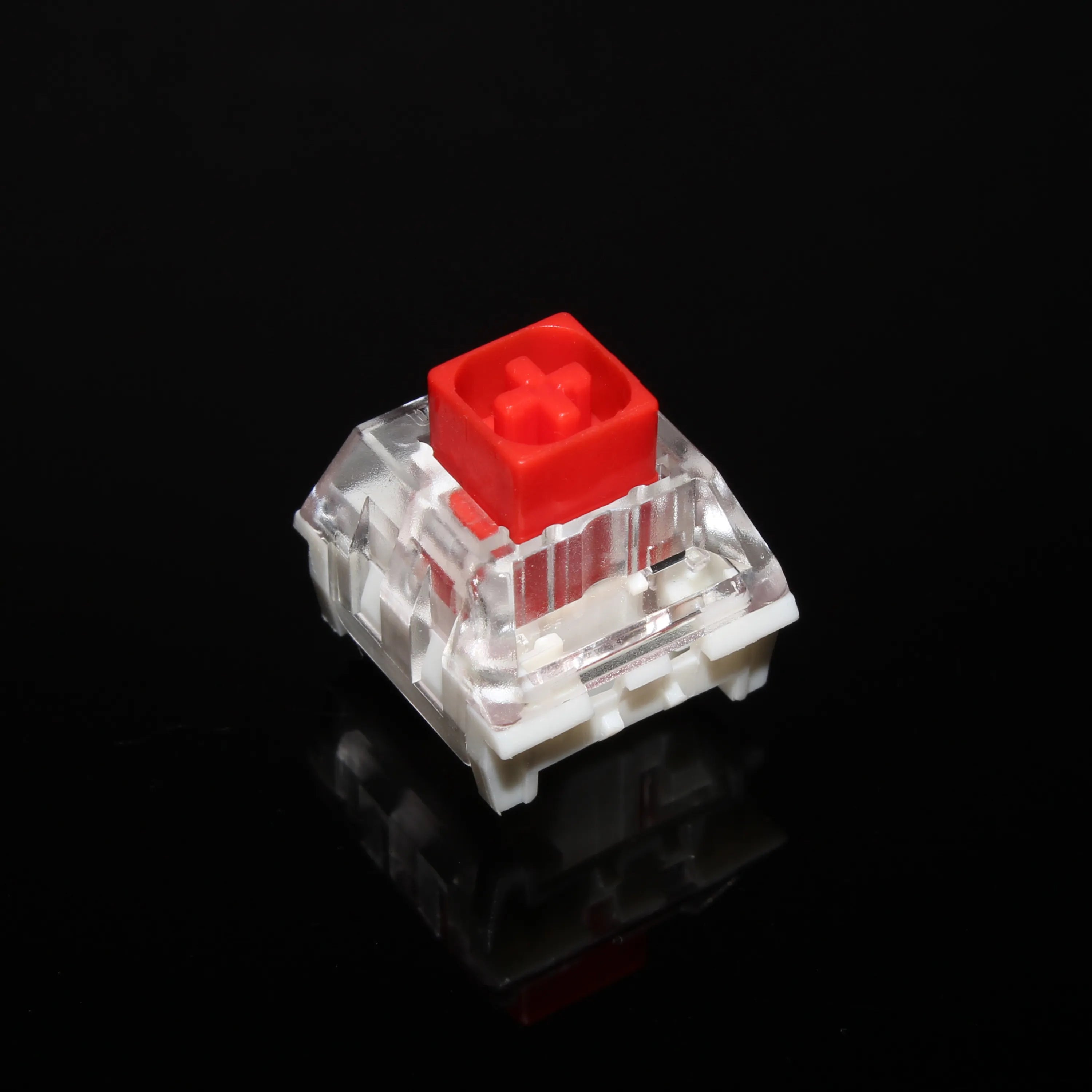

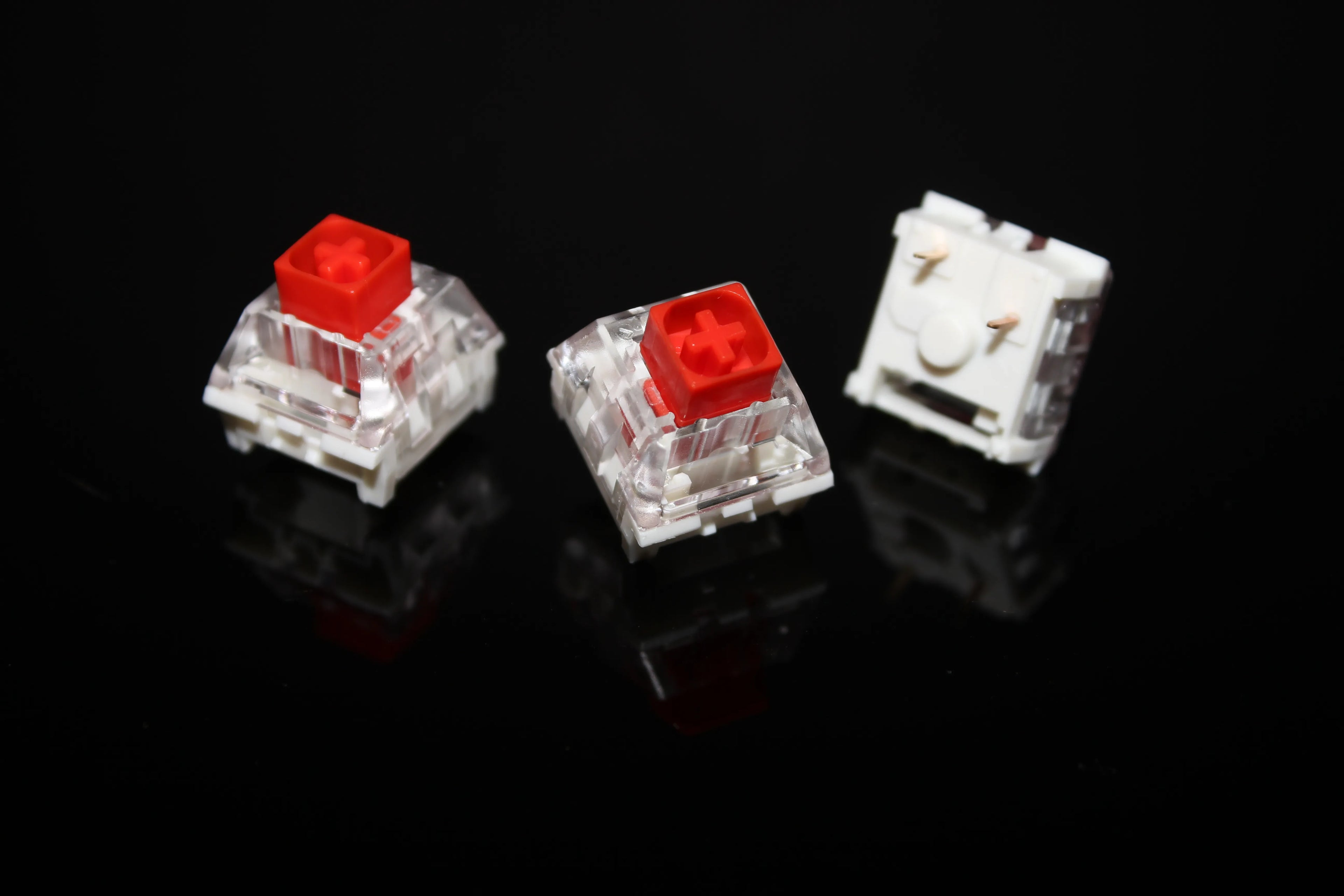

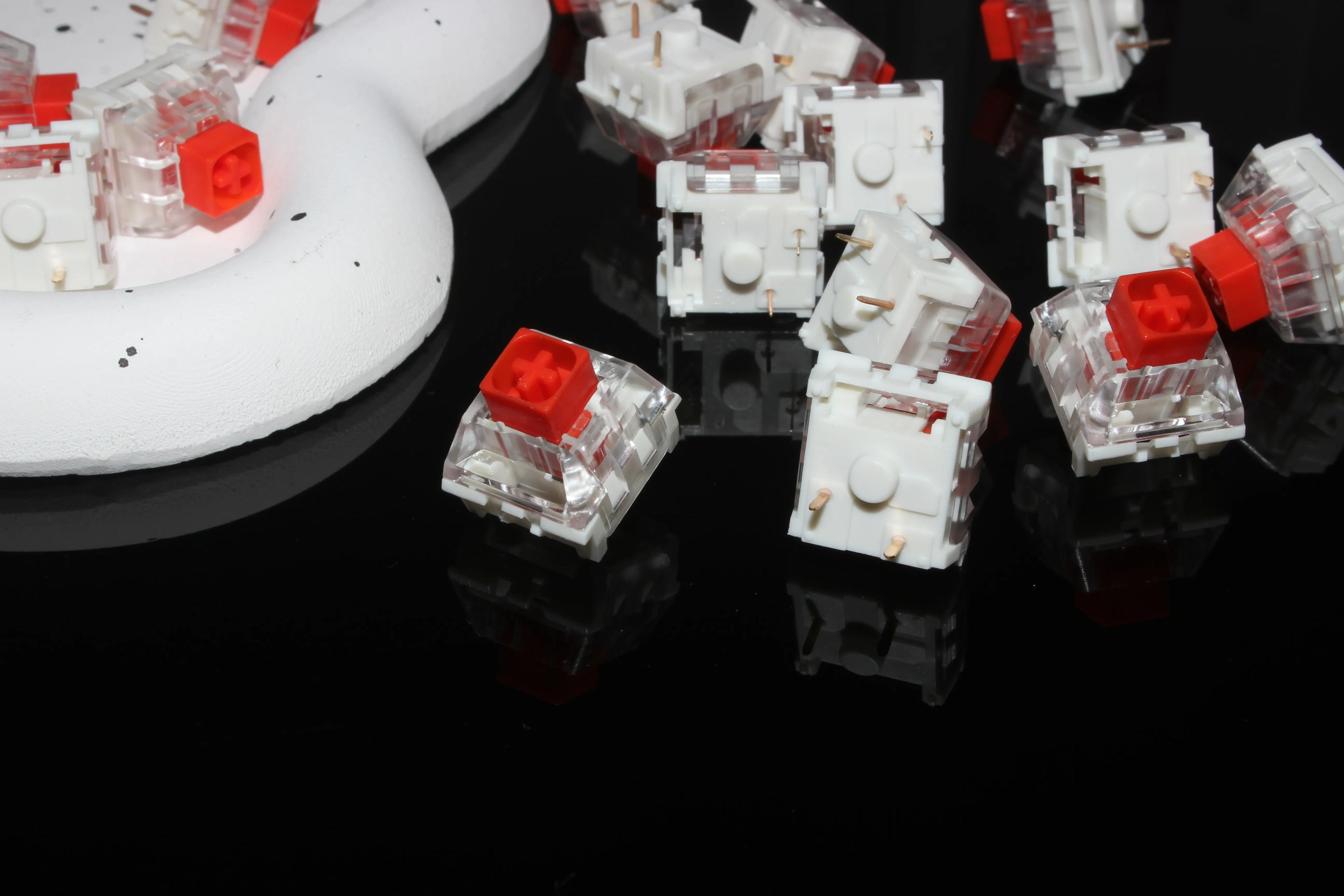

Kailh BOX red V1 Switch Linear Switches
Sale price
$0.25
Regular price
$0.30
(-17%)
⚡ Linear Switch | 🛡️ BOX IP56 | 💧 Dust/Waterproof
Kailh BOX Red V1,
Reliable Linear Performance
Kailh BOX Red V1 – Linear Switch
45±10gf light actuation | 1.8mm pre‑travel | 3.6mm total travel | Square dust‑wall stem for reduced wobble | BOX IP56 sealed structure | 18K gold contacts | 80 million cycle life. The classic linear that started the BOX revolution – stable, smooth, and built to last.
⚡ 45gf Linear
🛡️ BOX IP56
🔲 Dust‑Wall Stem
✨ 18K Gold Contacts
♾️ 80M Life
80M
Keystroke Life
45±10gf
Actuation Force
⭐ 4.7/5
User Rating
📦 In Stock
24h Dispatch
Frustrated by These?
Dust & Spills?
Open switch housings let in debris and moisture, causing failures. You need real protection.
Wobbly Keycaps?
Loose stems make typing feel imprecise. You want rock‑solid stability.
Inconsistent Smoothness?
Dry switches feel scratchy. You want factory‑smooth operation out of the box.
💡 Kailh BOX Red V1 solves them all — IP56 sealed protection, dust‑wall stability, and 18K gold contacts for reliability.
Why BOX Red V1?
🛡️ IP56 Sealed
🔲 Square Dust Wall
💧 Water Resistant
🧹 Crumb‑Proof
🛡️ Unique Selling Point
BOX Sealed Structure · Dust‑Wall Stem for Ultimate Stability
🔹 Feature Transparent PC sealed cover + nylon base. Square dust wall around the stem reduces keycap wobble. IP56 dust/waterproof rating.
🔹 Advantage Keeps internal contacts clean and dry; the dust wall ensures consistent keycap alignment with minimal lateral play.
🔹 Benefit Your keyboard survives accidental spills and dusty environments. Every keystroke feels solid and precise – no more shaky keycaps.
🔹 Evidence Kailh's BOX V1 design has been trusted by millions worldwide; IP56 certified for real‑world protection.
⚡ 45gf Actuation · 1.8mm Pre‑travel · 18K Gold Contacts
Smooth linear, corrosion‑proof, consistent⚡ Unique Selling Point
Balanced 45gf Force · 18K Gold Contacts for Longevity
🔹 Feature 45±10gf operating force, 1.8±0.4mm pre‑travel, 3.6±0.3mm total travel. 18K gold‑plated composite contacts.
🔹 Advantage Light enough for long sessions without fatigue, yet with a satisfying travel depth. Gold contacts resist oxidation and corrosion, ensuring stable electrical performance for 80M cycles.
🔹 Benefit Enjoy consistent, smooth linear feel for years. The gold alloy prevents chattering and double‑clicks, even in humid environments.
🔹 Evidence Kailh's 80M cycle certification; gold‑plated contacts proven in high‑humidity tests.
🔧 Common Feature
3‑Pin Design · Hollow Light Position · SMD LED Compatible
🔹 Feature 3-pin PCB mount base with hollowed‑out light position. MX stem compatible with most mechanical keyboards.
🔹 Advantage Easy drop‑in installation on 3‑pin hot‑swap PCBs. The hollow design allows SMD LED light to shine through evenly.
🔹 Benefit No modding required – fits most standard keyboards. Your RGB lighting remains vibrant and uniform.
🔹 Evidence Compatible with thousands of 3‑pin hot‑swap PCBs; user‑friendly for beginners and pros alike.
📊 BOX Red V1 vs. Standard Linear Switch
| Feature | Standard Linear | BOX Red V1 |
|---|---|---|
| Dust/Water Protection | None | BOX IP56 sealed – dust‑tight, water jets |
| Stem Wobble | Moderate | Square dust wall – reduced wobble |
| Contact Material | Standard copper | 18K gold‑plated composite – anti‑corrosion |
| Actuation Force | 45 – 55gf | 45±10gf – well‑balanced |
| Pre‑Travel | 2.0 mm | 1.8 mm – slightly faster |
| Lifespan | 50M cycles | 80M cycles |
| Lubrication | Often dry | Not pre‑lubed (allows user preference) |
Key Specs at a Glance
Type
Linear
Linear
Actuation Force
45 ± 10 gf
45 ± 10 gf
Pre‑Travel
1.8 ± 0.4 mm
1.8 ± 0.4 mm
Total Travel
3.6 ± 0.3 mm
3.6 ± 0.3 mm
Protection
BOX IP56
BOX IP56
Lubrication
Not pre‑lubed
Not pre‑lubed
Life
80M cycles
80M cycles
Pins
3‑pin
3‑pin
| Product Name | Kailh BOX Red V1 Switch |
|---|---|
| Type | Linear |
| Operation Force | 45 ± 10 gf |
| Pre‑travel | 1.8 ± 0.4 mm |
| Return Force | ≥ 15 gf |
| Tactile Force | N/A |
| Total Travel | 3.6 ± 0.3 mm |
| Sound Level | Low (linear) |
| Operation Life | 80 million cycles |
| Suitable For | Gaming, Office, General typing |
| Stem Material | POM (with square dust wall) |
| Top Housing Material | PC (transparent) |
| Bottom Housing Material | Nylon PA66 |
| Contact Material | 18K gold‑plated composite |
| Spring | Spring steel |
| Protecting Cover | Nylon PA66 (BOX sealed) |
| Slider | POM |
| Pins | 3-pin (PCB mount) |
| Factory Pre‑lubed | No |
| SMD LED Support | Yes – hollow light position |
💬 What Users Say
⭐⭐⭐⭐⭐
"The BOX Red V1 is a classic for a reason. The dust wall makes keycaps feel super stable, and the 45g force is perfect for typing. I've spilled coffee on my board twice – no issues thanks to the IP56 seal."
— @DurableUser
⭐⭐⭐⭐⭐
"Smooth and consistent. Not pre‑lubed, but that's fine – I like to add my own lube anyway. The 18K gold contacts give me peace of mind. Great value for a legendary switch."
— @ModderMike
⭐⭐⭐⭐⭐
"These were my first linear switches. The lack of wobble is noticeable compared to my old Outemu Reds. Highly recommended for anyone wanting a reliable, durable linear."
— @FirstTimeBuilder
🛡️ Our Promise to You
Enjoy free standard shipping on orders over $80, plus a 30‑day no‑questions‑asked return policy and a 1‑year warranty. If the switches are incompatible with your keyboard, we'll cover return shipping.
Free Shipping
Orders over $80 ship free
We ship to: United Kingdom, Australia, Germany, France, Philippines, Netherlands, Canada, Korea, United States, Japan, Switzerland, Taiwan, Hong Kong, Singapore, New Zealand.
30‑Day Returns + Compatibility Promise
Not satisfied? Return within 30 days for any reason. If the switches aren't compatible, we'll exchange or refund with free return shipping.
1‑year warranty covers manufacturing defects.
Fast Processing
Orders are quality‑checked and shipped within 24 hours.
Refunds processed within 4 weeks, often faster.
❓ Frequently Asked Questions
What's the difference between BOX Red V1 and V2?▼
V1 features the classic square dust wall and 3‑pin design. V2 introduced an extended gold‑plated spring and improved factory lubrication. Many users still prefer V1 for its raw, un‑lubed feel and compatibility with 3‑pin hot‑swap boards.
Are these switches pre‑lubed?▼
No, BOX Red V1 comes without factory lubrication. This allows you to add your preferred lube or use them stock – some users enjoy the natural POM‑on‑POM smoothness.
What is the IP56 rating?▼
IP56 means dust‑tight (level 5) and protected against powerful water jets (level 6). The BOX sealed structure keeps out dust, crumbs, and can survive accidental spills – though full submersion is not recommended.
Can I use these on a 5‑pin PCB?▼
These are 3‑pin switches. They will fit directly into 3‑pin hot‑swap sockets. For 5‑pin PCBs, you can still use them – the two extra holes will just be empty; no modification needed.
How does the 45gf feel compared to Cherry MX Red?▼
Very similar – Cherry MX Red is 45gf as well. The BOX Red V1 feels slightly smoother due to the POM stem and reduced wobble thanks to the dust wall.
Are these compatible with SMD LEDs?▼
Yes. The bottom housing has a hollowed‑out light position that allows SMD LEDs to shine through. The transparent PC top also helps diffuse light.
