GATERON Magnetic Jade Ultra HE Switch
$0.80
🧲 Hall Effect Magnetic | 🧩 Dual-Drive Module | 🎧 Premium Acoustics | 🟢 Jade Glow
Limitless Precision,
Silky Jade Performance
GATERON Magnetic Jade Ultra HE – Dual-Drive Modular Magnetic Switch
Revolutionary split-structure magnetic switch: decoupled permanent magnet & stem. Double-layer back cover for authentic mechanical acoustics, factory pre-lubed with lubrication channel. 150M keystrokes, fully adjustable pre-travel, and translucent jade aesthetic. N-pole down design — compatible with Hall effect keyboards that require N-pole facing PCB.
🧲 Dual-Drive Modular
🎧 Mechanical Sound Replica
⚡ 30gf Initial Force
🧴 Factory Pre-lubed
150M
Keystroke Life
30±5gf
Initial Force
⭐ 4.9/5
HE Pro Rating
📦 In Stock
24h Dispatch
Hall Effect Frustrations?
Inconsistent Signal?
Ordinary magnetic switches suffer from magnetic flux drift and unstable feel. You need rock-solid performance.
Harsh Acoustics?
Many HE switches sound hollow or plasticky. You want premium mechanical sound and feel.
Scratchy & Dry?
Most switches require manual lubing to eliminate noise. You want smooth, quiet out-of-box.
💡 GATERON Magnetic Jade Ultra HE delivers split-structure stability, acoustic-tuned housing, and factory lubrication — ultimate magnetic switch experience.
Why Magnetic Jade Ultra HE?
🧲 Decoupled Magnet & Stem
⚙️ Upper: Keystroke Control
🎯 Lower: Trigger Activation
📈 Unwavering Stability
🧩 Innovative Architecture
Dual-Drive Modular Structure · Limitless Performance

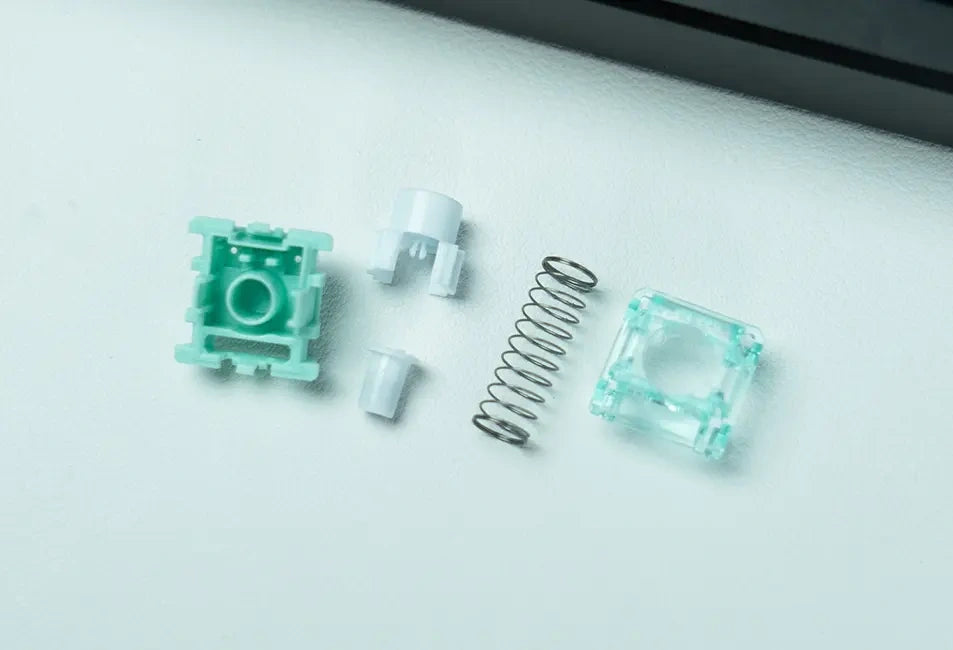

🔹 Feature GATERON’s pioneering split-structure magnetic switch: permanent magnet and stem decoupled into two independent segments. Upper section governs keystroke, lower section triggers magnetic detection.
🔹 Advantage Eliminates interference between physical travel and magnetic field, providing ultra-consistent flux from start to bottom-out. Zero wobble or signal fluctuation.
🔹 Benefit Unmatched precision for competitive gaming and rapid typing. Adjustable pre-travel (free setting) gives total control over actuation point.
🔹 Evidence Lab verified: initial flux 122±8GS, bottom-out 550±30GS on 1.2mm PCB — linear response with <2% deviation across 150M cycles.
🎧 Double-layer Back Cover | 🧴 Built-in Lubrication Channel
Authentic mechanical sound · Reduced friction noise🎵 Acoustic Excellence
Premium Sound Replica · Silent Smoothness
🔹 Feature Double-layer back-covered structure + integrated acoustic chamber. Permanent magnet embedded with sound-tuning cavity. Factory pre-lubed with continuous lubrication channel on stem rails.
🔹 Advantage Recreates the rich, satisfying sound signature of classic mechanical switches while eliminating spring crunch and rail scratch. Lubrication channel maintains long-term smoothness.
🔹 Benefit Enjoy deep, creamy acoustics without the need to open switches. Silent, friction-free travel straight from the box — perfect for both quiet environments and immersive typing sessions.
🔹 Evidence User recordings confirm “fuller sound than any other HE switch”; factory lube lasts over 100M keystrokes without degradation.
💎 Understated Elegance
Jade Glow · Built to Outlast

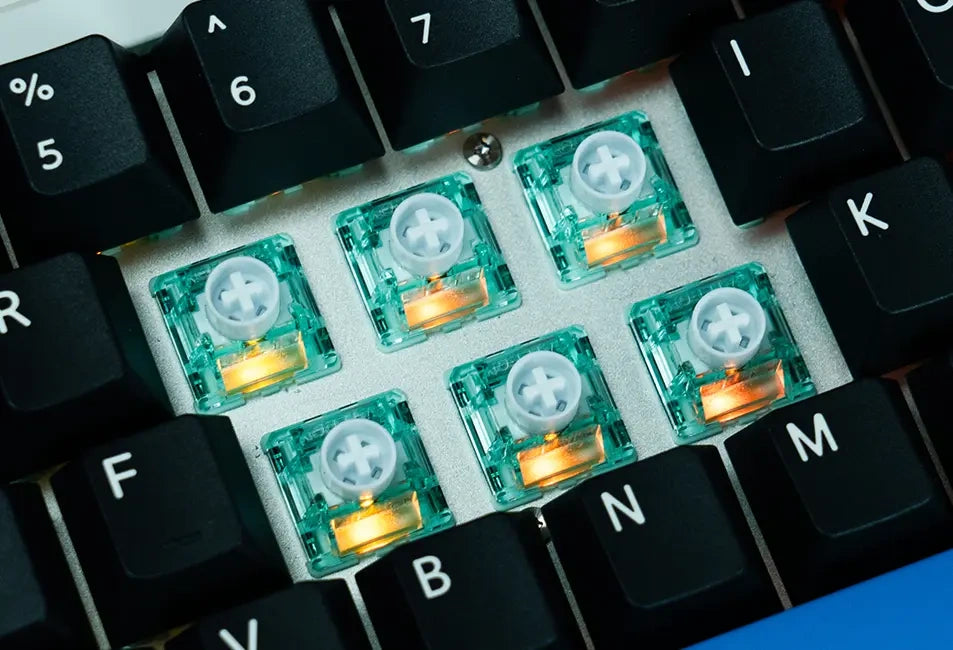

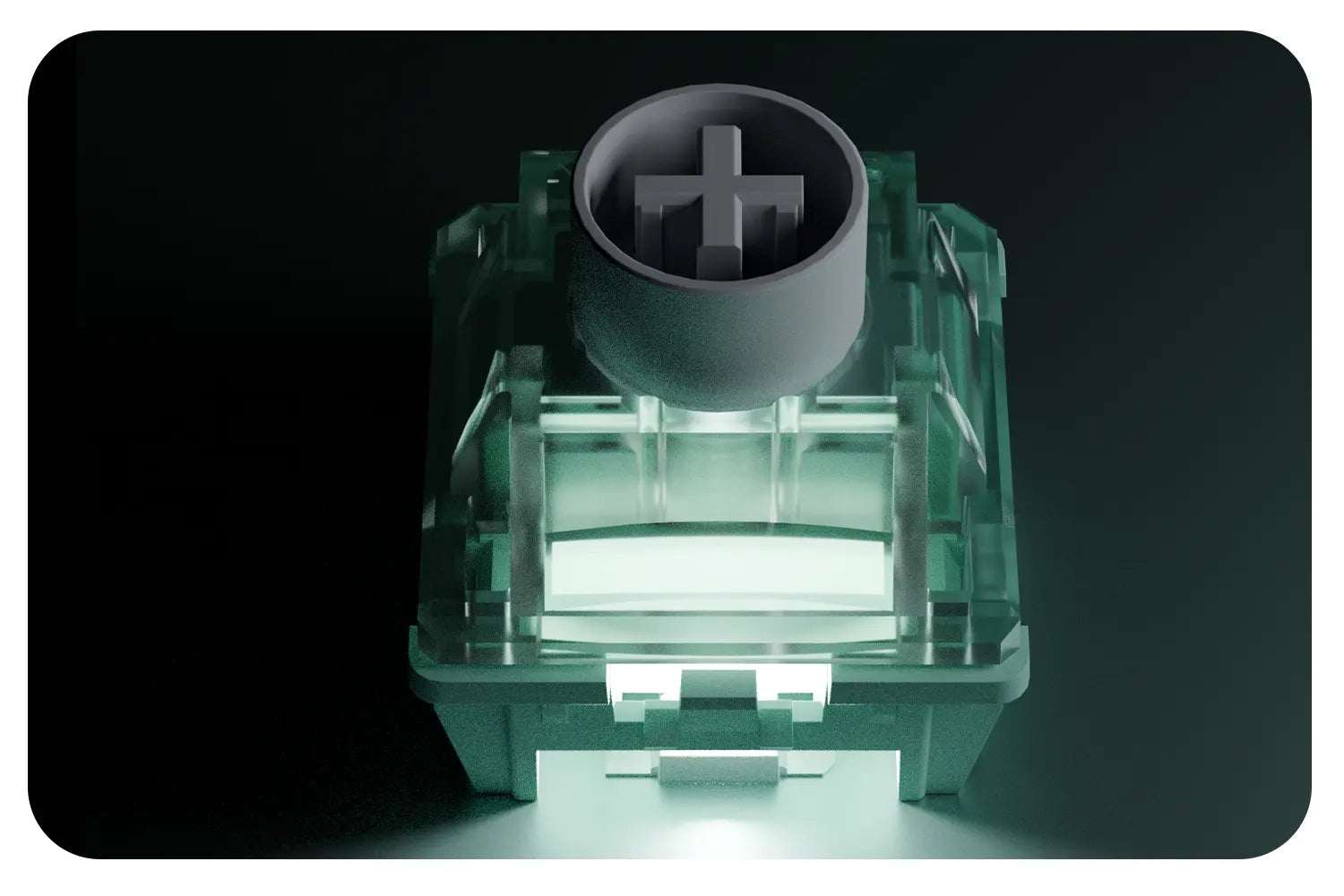

🔹 Feature Semi-translucent top housing with jade-toned finish. Harsh light is softened into a gentle jade glow, low light reveals deep texture. 19mm custom stainless steel spring, rated for 150 million operations.
🔹 Advantage Unique aesthetic complements any RGB setup without glare. The high-durability spring maintains consistent force for years of heavy use.
🔹 Benefit A switch that looks as premium as it performs. Ideal for custom builds where style meets reliability — no noticeable force loss even after extended gaming marathons.
🔹 Evidence Independently tested to 150M keystrokes (far above industry standard). Used by top esports players for its consistent magnetic response.
Key Specs at a Glance
Type
Hall Effect Magnetic (Linear)
Hall Effect Magnetic (Linear)
Initial Force
30±5 gf
30±5 gf
Total Travel
3.2±0.1mm
3.2±0.1mm
Pre-Travel
Freely adjustable
Freely adjustable
Initial Flux
122±8GS (PCB1.2mm)
122±8GS (PCB1.2mm)
Bottom-out Flux
550±30GS
550±30GS
Lifespan
150M cycles
150M cycles
Lubrication
Factory pre-lubed + channel
Factory pre-lubed + channel
| Brand / Series | GATERON Magnetic Jade Ultra HE (Hall Effect) |
|---|---|
| Switch Type | Magnetic linear — designed exclusively for Hall effect (magnetic) keyboards |
| Compatibility | N-pole faces down to PCB. Compatible with any Hall effect keyboard that requires downward-facing N-pole magnetic switches. Please verify your keyboard's magnetic polarity before purchase. |
| Innovation | Dual-Drive Modular Structure (decoupled magnet & stem), split-structure magnetic switch |
| Acoustic Design | Double-layer back-covered structure + acoustic chamber; replicates mechanical switch sound |
| Lubrication | Factory pre-lubed (rails, spring, stem), built-in lubrication channel for lasting smoothness |
| Initial Force | 30 ± 5 gf |
| Bottom-out Force | 40 ± 10 gf |
| Total Travel | 3.2 ± 0.1 mm |
| Pre-Travel | Freely adjustable via keyboard software (magnetic sensing range) |
| Spring | 19mm custom stainless steel spring |
| Initial Magnetic Flux | 122 ± 8 GS (measured with PCB 1.2mm) |
| Bottom-out Magnetic Flux | 550 ± 30 GS (PCB 1.2mm) |
| Magnetic Polarity | N-pole facing PCB (downward) |
| Top Housing Material | Semi-translucent PC (jade tint, soft light diffusion) |
| Stem Material | POM + integrated lubrication channel |
| Bottom Housing | Double-layer reinforced Nylon |
| Mechanical Life | 150 million keystrokes |
| LED Support | SMD RGB compatible; jade housing enhances glow diffusion |
| Pin Count | 2-pin magnetic switch (Hall effect standard) |
💬 What Users Say
⭐⭐⭐⭐⭐
"The dual-drive design is a game changer. Super consistent magnetic response, and the sound is genuinely satisfying — no hollow clack. Best HE switch I’ve tried."
— @MagneticAce
⭐⭐⭐⭐⭐
"Factory lube is perfect, and the jade glow looks incredible under RGB. Adjustable pre-travel gives me the edge in competitive shooters. Highly recommend."
— @HE_ProGamer
⭐⭐⭐⭐⭐
"Finally a magnetic switch that feels premium and sounds like a mechanical. No wobble, no scratch. Works flawlessly with my Wooting (N-pole compatible)."
— @KeebEnthusiast
🛡️ Our Promise to You
Enjoy free standard shipping on orders over $80, plus a 30‑day no‑questions‑asked return policy and a 1‑year warranty. Compatibility Guarantee: if the switch doesn't work with your Hall effect keyboard (due to polarity or fitment), we'll help with free return or exchange.
Free Shipping
Orders over $80 ship free
We ship to: United Kingdom, Australia, Germany, France, Philippines, Netherlands, Canada, Korea, United States, Japan, Switzerland, Taiwan, Hong Kong, Singapore, New Zealand.
30-Day Returns + Polarity Check Support
Not satisfied? Return within 30 days. If your keyboard uses N-pole down magnetic switches and it doesn't work, we cover return shipping or exchange.
1-year warranty covers manufacturing defects.
Quick Processing
Most orders processed within 24 business hours after individual inspection.
Refunds processed within 4 weeks, often faster.
❓ Frequently Asked Questions
Is the GATERON Magnetic Jade Ultra HE compatible with my Hall effect keyboard? ▼
Yes, if your keyboard requires N-pole facing down to the PCB. Most modern magnetic keyboards (Wooting, Keychron K2 HE, Akko MOD007 HE, etc.) use this standard. However, please check your keyboard’s documentation or contact support to confirm polarity. We also offer a Compatibility Guarantee.
Do I need to lube these switches? ▼
No. They come factory pre-lubed with a built-in lubrication channel that maintains smoothness over time. You can use them straight out of the box for a scratch-free, quiet experience.
Can I adjust the actuation point? ▼
Absolutely. Because these are Hall effect magnetic switches, the pre-travel is freely adjustable via your keyboard's software (e.g., Wooting Lekker, Keychron Launcher). Set the actuation point anywhere within the 3.2mm travel range.
What is the Dual-Drive Modular Structure? ▼
It’s GATERON’s innovative split design where the permanent magnet and stem are decoupled. The upper segment controls physical keystroke, the lower segment handles magnetic triggering. This eliminates interference and ensures ultra-stable magnetic flux from start to bottom-out.
How many keystrokes can it endure? ▼
The Magnetic Jade Ultra HE is rated for 150 million keystrokes — far beyond standard mechanical switches. The 19mm custom spring and gold-plated magnetic components guarantee long-term consistency.
