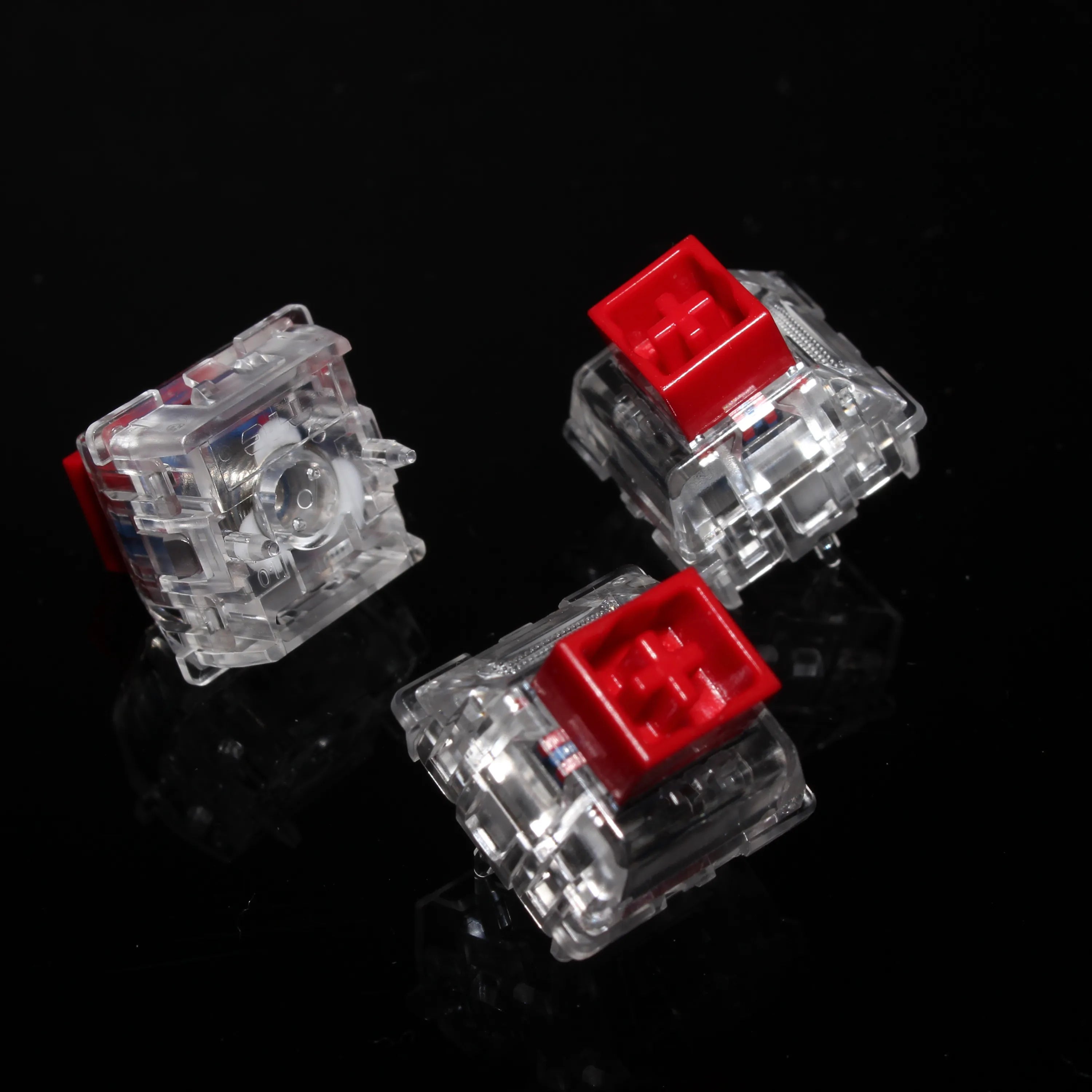

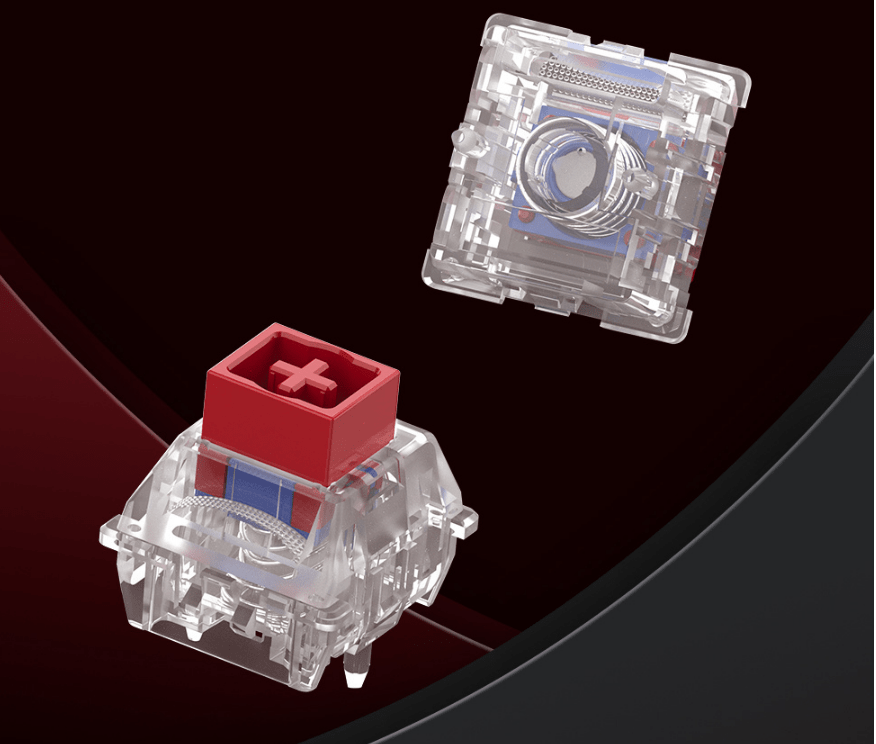

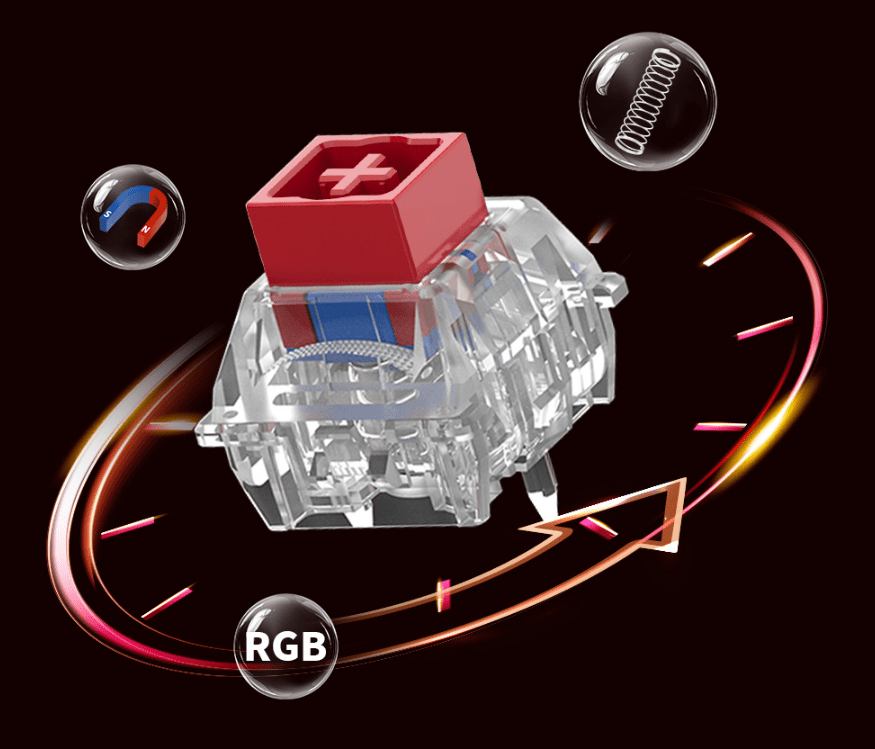

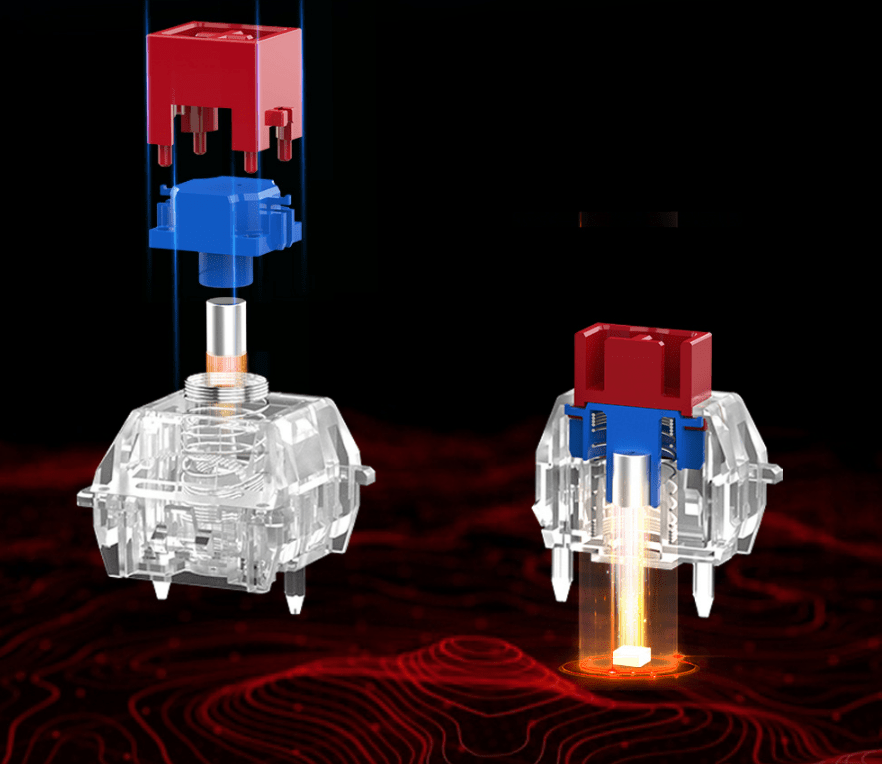

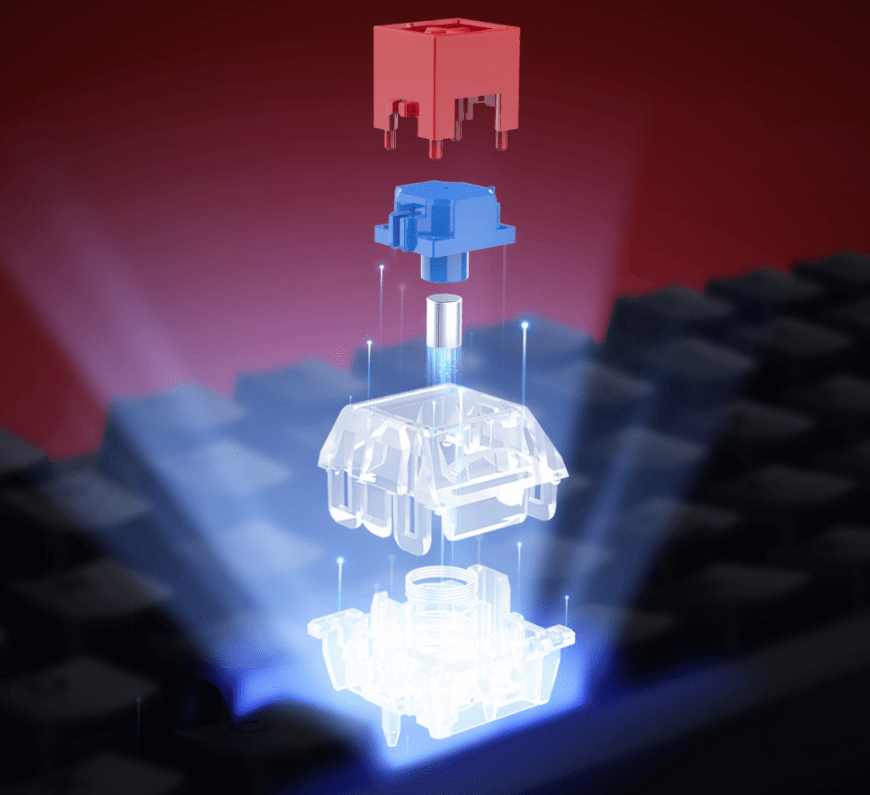

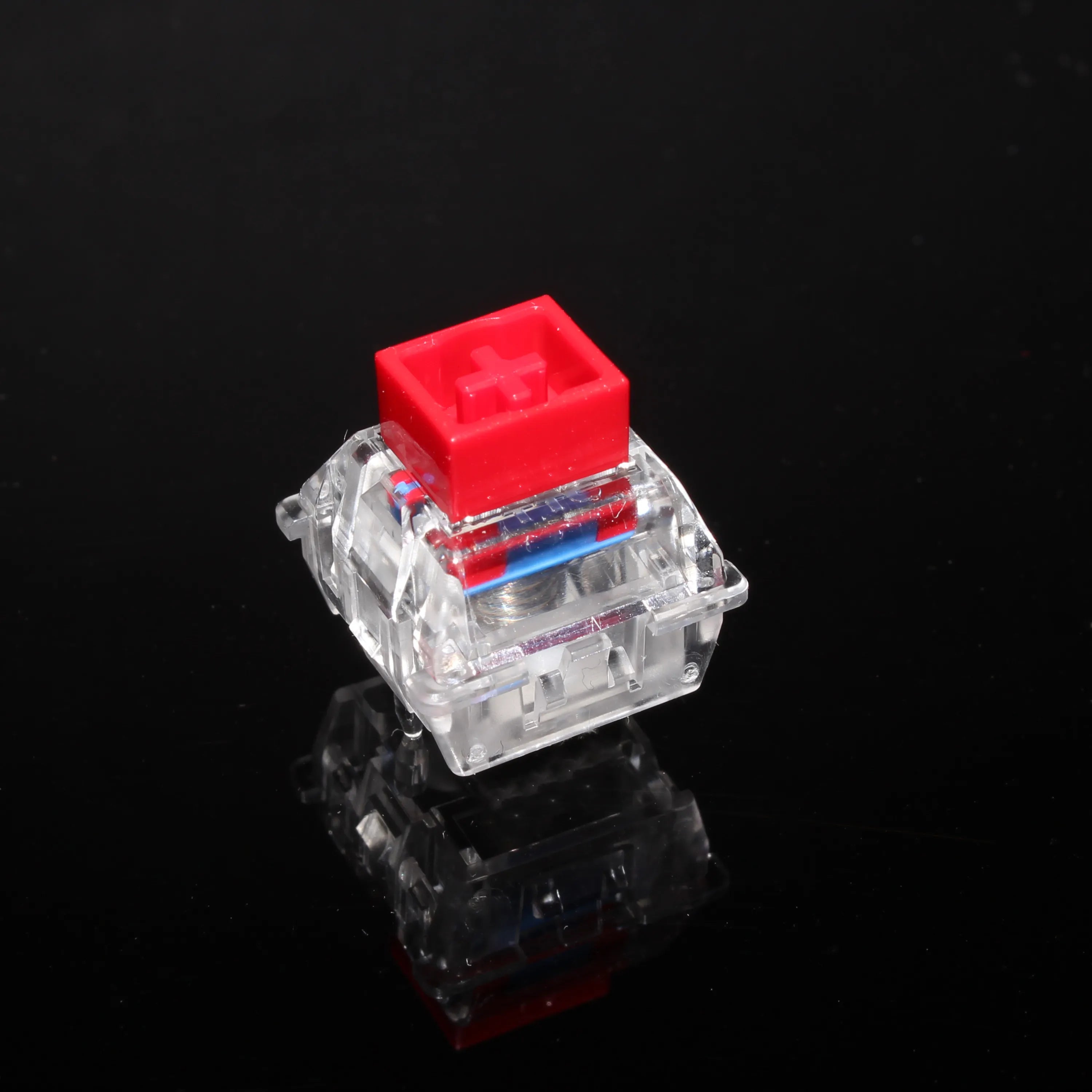

TTC RGB King of Magnetic Switch Hall Effect switches
Enjoy (a) free gift(s) with every order! No special code needed, just order and wait for your surprise.
- Free shipping with orders over $80
- Ready for dispatch in 1 days
- Tracking number will be available in 1 days after shipment
- Order cancellation is acceptable within 12 hours of placing order
For China customers: When ships to China Mainland, Macau (SAR) and Hong Kong (SAR), please provide your name and shipping address in Chinese. When ships to Taiwan, please provide your name and shipping address in Chinese and your ID card number (or passport number of you are foreigner) in the order notes. More detailed shipping information please see here.
For Korea customers: Please provide your name and shipping address in Korean. Your tax ID (P+12 digits), phone number (010+8 digits) are required and must belongs to the same recipient.
For Brazil, Chile, Colombia, Turkey, Indonesia customers: Please provide the recipient’s tax ID or CPF, CNP, VAT, passport ID and EOR.
You can check Shipping Policy for more information.
Diykey offers a 1-year limited warranty on all Diykey products. The Limited Warranty Period starts from the date of purchase. If there is any issue, please contact us
| Manufacturer | TTC |
| Type | Linear Switch |
| Actuation Force | 35±5gf |
| Pre-travel | Custom defined |
| Total Travel | 3.4±0.2mm |
| Mechanical life | 100 million times |
| Top Housing | PC |
| Bottom Housing | PC |
| Stem | POM |
| Initial magnetic flux | 100±15Gs (on 1.2mm PCB) ¦ 90±15Gs (on 1.6mm PCB) |
| Final magnetic flux | 640±60Gs (on 1.2mm PCB) ¦ 480±60Gs (on 1.6mm PCB) |
| Uses | General typing, office use |
| Noise Level | Medium-loud |
| Lubrication | Factory lubed |
| SMD LED | Compatible with all LEDs, including SMD |
Frequently Asked Questions
Below are some of our most frequently asked questions. If you don't see your question below, don't hesitate to reach out!
Shipping
Australia, Germany, France, Philippines, Netherlands, Canada, United States, Japan, Switzerland, Taiwan, Hong Kong, Singapore, New Zealand
We will ship within two business days and upload tracking numbers as soon as possible.
The following is the shipping cost information set according to different countries and regions:
United States: The shipping cost is 5.9 US dollars, and the estimated shipping time is 8 - 10 days.
Australia: The shipping cost is 5.8 US dollars, and the estimated shipping time is 6 - 9 days.
Germany: The shipping cost is 5.9 US dollars, and the estimated shipping time is 8 - 12 days.
France: The shipping cost is 7 US dollars, and the estimated shipping time is 8 - 12 days.
Philippines: The shipping cost is 5.9 US dollars, and the estimated shipping time is 4 - 6 days.
Netherlands: The shipping cost is 7 US dollars, and the estimated shipping time is 5 - 9 days.
Canada: The shipping cost is 5.9 US dollars, and the estimated shipping time is 8 - 10 days.
Japan: The shipping cost is 5.8 US dollars, and the estimated shipping time is 5 - 8 days.
Switzerland: The shipping cost is 7 US dollars, and the estimated shipping time is 6 - 10 days.
Taiwan region of China: The shipping cost is 5.9 US dollars, and the estimated shipping time is 3 - 5 days.
Hong Kong region of China: The shipping cost is 5.8 US dollars, and the estimated shipping time is 2 - 4 days.
Singapore: The shipping cost is 5.9 US dollars, and the estimated shipping time is 4 - 7 days.
New Zealand: The shipping cost is 5.9 US dollars, and the estimated shipping time is 5 - 8 days.
To ensure safety during transit, our switches are packaged in sturdy cans.
Other
Our switches do not support sleeve-style hot-swappable sockets. For optimal performance, we recommend using them with socket-based hot-swappable keyboards. Manual soldering is required for non-hot-swappable keyboards.
Our switches are compatible with most standard cross-shaped (MX-style) keycaps available on the market, except for specialized keycaps. This allows easy integration with your existing or custom keycap sets.
Yes, all our keyboard switches are pre-lubricated from the factory, except for select POM material switches. This ensures smooth and effortless typing right out of the box.
