Switch type: MX-stem 5-pin
Linear switch
Total travel distance: 4.0+0.3mm
Pre-travel distance: initial force: 35gf(min)
Operation force: 50+10gf
Bottom-out force: 62+10gf
Switch Spring: 15mm non-gold plated stainless steel
  • Free shipping with orders over $80
  • Ready for dispatch in 1 days
  • Tracking number will be available in 1 days after shipment
  • Order cancellation is acceptable within 12 hours of placing order

For China customers: When ships to China Mainland, Macau (SAR) and Hong Kong (SAR), please provide your name and shipping address in Chinese. When ships to Taiwan, please provide your name and shipping address in Chinese and your ID card number (or passport number of you are foreigner) in the order notes. More detailed shipping information please see here.

For Korea customers: Please provide your name and shipping address in Korean. Your tax ID (P+12 digits), phone number (010+8 digits) are required and must belongs to the same recipient.

For Brazil, Chile, Colombia, Turkey, Indonesia customers: Please provide the recipient’s tax ID or CPF, CNP, VAT, passport ID and EOR.

You can check Shipping Policy for more information.

Diykey offers a 1-year limited warranty on all Diykey products. The Limited Warranty Period starts from the date of purchase. If there is any issue, please contact us

  • Delivery

    Standard shipping: (6-12 Days)

  • Free Return & Exchange

Free shipping on orders over $80USD

The Vertex V 1 Custom Switch features a sophisticated design and premium materials, providing an exceptional typing experience. With its unique color and robust construction, this switch is perfect for discerning users seeking both aesthetics and performance.

Key Features

Top Cover Material: PA66

Bottom Cover Material: PA66

Stem Material: POM

Actuation Travel Distance: 2mm with a 50g actuation force

Bottom-Out Travel Distance: 4mm with a 62g bottom-out force

Spring: 15mm single-stage, thickened, non-gold plated

Color and Aesthetics

The switch features a Long Spring Blue color, a subtle shade leaning towards purple, paired with a sleek black housing. This combination creates a refined and sophisticated look, perfect for any keyboard.

Material Quality

The use of nylon material adds a desirable texture to the switch. While it has a slight sandy feel, this contributes to a tactile experience that feels premium and solid. The stability of the stem enhances the typing feel, making it more satisfying.

Sound Profile

Despite having a 4mm travel distance, the switch produces a muted yet focused sound due to the stem's bottom-out design. The top cover is securely fitted, ensuring that the rebound is not loose or scattered.

Versions Available

This switch comes in both lubricated and non-lubricated versions. For customized switches, the choice of lubrication may not be significant, as the factory-lubed version may not always meet the high-fidelity expectations of enthusiasts. Due to the limited availability and lower price of the factory-lubed version, some users might experience inconsistent sound due to spring resonance. Therefore, it might be preferable to lubricate the switches personally for optimal performance.

Conclusion

The Vertex V Custom Long Spring Blue Switch combines style, performance, and a satisfying tactile experience, making it an excellent choice for gamers and typists alike. Upgrade your keyboard with this premium switch for a truly elevated typing experience!
Manufacturer Vertex
Type Linear Switch
Operation Force 50+10gf
Tactile Force 62+10gf
Pre-Travel 1.80+0.4mm
Total Travel 4.0+0.3mm
Mechanical life 100million times
Top Housing Nylon PA66
Bottom Housing Nylon PA66
Stem POM
Spring Length 15.2mm
Pins 5-pin switch (can be modified to 3-pin)
Uses gaming,General typing, office use
Noise Level Medium-loud
Lubrication Factory lubed
SMD LED Compatible with all LEDs, including SMD
Switch Tech
 MX-stem 5-pin
Compatibility
 Works with any PCB compatible with Cherry-style switches. This 5-pin (PCB mount) switch can be compatible with 3-pin PCBs by clipping off the two extra pins.

Frequently Asked Questions

Below are some of our most frequently asked questions. If you don't see your question below, don't hesitate to reach out!

Shipping

Australia, Germany, France, Philippines, Netherlands, Canada, United States, Japan, Switzerland, Taiwan, Hong Kong, Singapore, New Zealand

We will ship within two business days and upload tracking numbers as soon as possible.

The following is the shipping cost information set according to different countries and regions:

United States: The shipping cost is 5.9 US dollars, and the estimated shipping time is 8 - 10 days.

Australia: The shipping cost is 5.8 US dollars, and the estimated shipping time is 6 - 9 days.

Germany: The shipping cost is 5.9 US dollars, and the estimated shipping time is 8 - 12 days.

France: The shipping cost is 7 US dollars, and the estimated shipping time is 8 - 12 days.

Philippines: The shipping cost is 5.9 US dollars, and the estimated shipping time is 4 - 6 days.

Netherlands: The shipping cost is 7 US dollars, and the estimated shipping time is 5 - 9 days.

Canada: The shipping cost is 5.9 US dollars, and the estimated shipping time is 8 - 10 days.

Japan: The shipping cost is 5.8 US dollars, and the estimated shipping time is 5 - 8 days.

Switzerland: The shipping cost is 7 US dollars, and the estimated shipping time is 6 - 10 days.

Taiwan region of China: The shipping cost is 5.9 US dollars, and the estimated shipping time is 3 - 5 days.

Hong Kong region of China: The shipping cost is 5.8 US dollars, and the estimated shipping time is 2 - 4 days.

Singapore: The shipping cost is 5.9 US dollars, and the estimated shipping time is 4 - 7 days.

New Zealand: The shipping cost is 5.9 US dollars, and the estimated shipping time is 5 - 8 days.

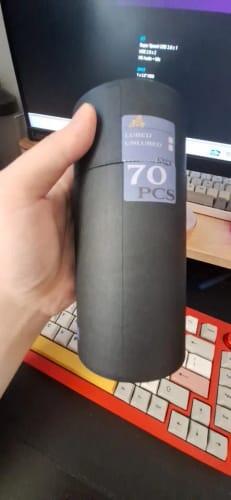

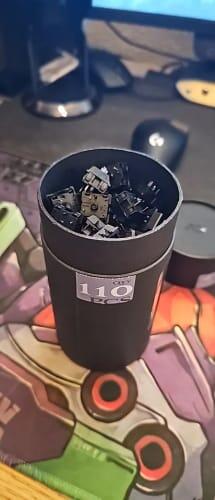

To ensure safety during transit, our switches are packaged in sturdy cans.
