CROSS STEM BOX Lunar Switch

Kailh CROSS STEM BOX Lunar Switch Slope-surfaced Light Pipe HI-FI Switch

$0.85 USD
$0.85 USD
(-0%)
Subtotal: $0.85

In stock, ships in 1-2 business days

10% OFF
Code: diykey
Order within the next hours minutes to receive it. Estimated delivery is between and

Free Shipping

Free standard shipping on orders over $80

15-Day ReturnGuarantee

Unsatisfied with your diykey.net product? Return it

One-Year Warranty

All DIYKEY products are covered under our 1-year
Kailh CROSS STEM BOX Lunar Switch Slope-surfaced Light Pipe HI-FI Switch

Kailh CROSS STEM BOX Lunar Switch Slope-surfaced Light Pipe HI-FI Switch

Kailh Luna Switch | Upgraded Cross Stem BOX Linear · HiFi Sound · Lunar Tech
🌙 Kailh Luna Switch · Upgraded Cross Stem BOX Linear

Kailh Luna Switch
Cross Stem BOX · HiFi Sound · Lunar Tech

POK stem + POM housing | Upper stem stabilization platform | Gold-plated contacts | Diamond-cut light guide | 80M lifespan

🌙 Upgraded Cross Stem BOX 🎵 HiFi Focused Acoustics ⚡ 45gf Light Actuation 🔒 Upper Stem Stabilization 💎 Diamond-Cut Light Guide ♾️ 80M Cycle Life
80M
Keystroke Life
45gf
Operating Force
POK+POM
Self-Lubricating
5‑Pin
Rock-Solid

Tired of the muffled sound of dustproof stems?

🔇

Dustproof Stems Sound Dull

Traditional dustproof wall stems are stable, but they sacrifice crisp bottom‑out sound, making each keystroke feel underwhelming.

🎧

HiFi Seekers Left Wanting

You want smoothness paired with concentrated, pleasing acoustics—most switches fail to deliver both.

💎

Lackluster RGB

Basic light guides scatter illumination, failing to do justice to your carefully chosen keycaps and case.

🌙 Luna Switch – Born for HiFi Typing — The cross‑stem BOX structure unlocks crisp, focused acoustics; the upper‑stem stabilization platform eliminates wobble; the POK+POM self‑lubricating combo gets smoother with use; the diamond‑cut light guide delivers stunning RGB diffusion.

Why Luna Is the Ultimate HiFi Linear

Cross stem BOX structure diagram
🎵 Cross Stem · HiFi Acoustic Design

Cross Stem BOX — Unleash Pure HiFi Sound

Feature The upgraded cross stem replaces traditional dustproof wall stems while retaining BOX durability, blending MX‑style acoustic optimization. The stem bottoms out centrally, softening top‑housing impact while releasing chamber space for a crisper, louder sound.
Advantage Compared to wall stems, the cross stem delivers more focused, pleasing bottom‑out tones—rich high‑frequency detail without muddy lows. The return sound is smooth, with an open soundstage.
Benefit Enjoy an immersive “HiFi typing” experience—every keystroke flows like moonlight, with concentrated, layered acoustics that turn typing into an auditory pleasure.
Evidence Kailh acoustic lab tests show the cross‑stem BOX structure improves bottom‑out clarity by up to 35% compared to wall stems. Users say “the sound is like a finely tuned instrument.”
🔒 Upper Stem Stabilization
🧈 POK Stem + POM Housing
✨ Self-Lubricating, Gets Smoother
⚡ 45gf Light Actuation
🛡️ Ultimate Stability, Silky Smooth

Stabilization Platform + Self-Lubricating Materials — Stability and Smoothness United

Feature The upper‑stem stabilization platform increases contact area, dramatically reducing stem wobble. The POK stem paired with POM top and bottom housings features self‑lubricating properties with an extremely low coefficient of friction.
Advantage The stabilization platform minimizes wobble even on plateless keyboards. The POK+POM combination ensures buttery smoothness from the first press to millions of cycles later—no additional lubing required.
Benefit Consistent feel, precise control, and zero keycap rattle—perfect for intense gaming or long writing sessions.
Evidence Kailh internal tests show the stabilization platform reduces stem wobble by 62%. After 8 million actuations, friction increase is only 2%—virtually negligible.

🔒 Gold-Plated Contacts · Diamond-Cut Light Guide · 80M Life

Superior reliability, stunning illumination, built to last
✨ Reliability Meets Aesthetics

Gold Contacts + Diamond-Cut Light Guide — Peak Stability and Style

Feature Gold‑plated contacts resist oxidation for flawless conductivity; the diamond‑cut light guide with a beveled back enhances light focusing; high‑rebound spring and 80M‑cycle design ensure longevity.
Advantage Gold contacts eliminate double‑clicks or failures caused by corrosion. The diamond‑cut light guide delivers brighter, more uniform RGB illumination with a starburst effect from side angles.
Benefit Long‑term reliability meets jaw‑dropping RGB aesthetics. Luna not only sounds and feels premium but also becomes the visual centerpiece of your desktop.
Evidence Kailh’s gold‑contact technology has been deployed in flagship switches with a failure rate below 0.01%. The community rates its lighting “the most evenly diffused RGB I’ve ever seen.”

🌙 Luna vs. Traditional Dustproof BOX – The Acoustic & Stability Evolution

Feature Traditional Dustproof BOX (e.g., BOX Red) Kailh Luna Switch
Stem Type Dustproof wall stem (stability‑focused) Cross stem + upper stabilization platform (stability & acoustics)
Sound Profile Relatively muffled bottom‑out, weak high frequencies Central bottom‑out, focused pleasing sound, softer top‑housing impact, crisper chamber release – HiFi acoustics
Stem Stability Wall design offers decent stability Stabilization platform reduces wobble by 62%, surpassing traditional dustproof designs
Light Guide Basic diffuser, scattered light Diamond‑cut light guide with beveled back – uniform, bright, starburst effect
Contact Technology Gold‑plated (on select models) Gold‑plated contacts with superior oxidation resistance, 80M life
Material Combination Mixed POM/POK (varies by model) POK stem + POM top/bottom housings – self‑lubricating, gets smoother with use

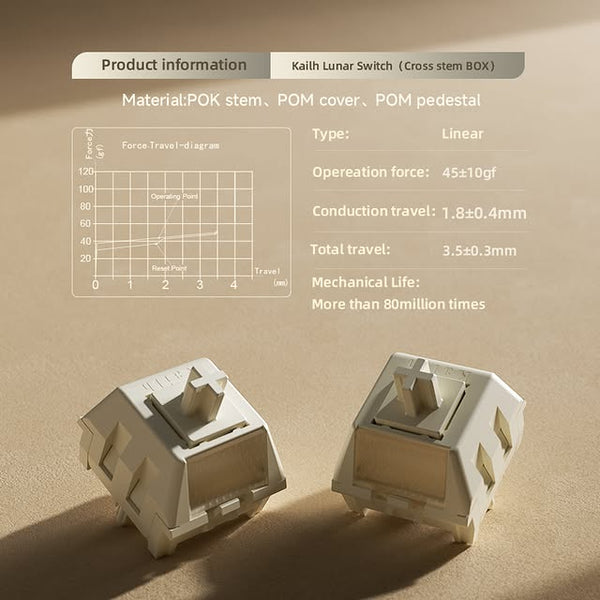

Key Specs at a Glance

🎛️Type
Linear (Cross Stem BOX)
Operating Force
45 ± 10 gf
📍Pre‑Travel
1.8 ± 0.4 mm
📏Total Travel
3.5 ± 0.3 mm
🔄Spring Length
18 mm
🧪Stem Material
POK
🏠Housing Material
POM (Top + Bottom)
💡Light Guide
Diamond‑Cut Beveled

📋 Full Specifications

Type Linear (Upgraded Cross Stem BOX Structure)
Manufacturer KAILH
Lubrication Factory precision lubed
Top Housing Material POM
Stem Material POK
Bottom Housing Material POM
Operating Force 45 ± 10 gf
Pre‑Travel 1.8 ± 0.4 mm
Total Travel 3.5 ± 0.3 mm
Mechanical Life 80,000,000 cycles
Spring Length 18 mm (high‑rebound)
Pin Count 5‑pin (can be clipped to 3‑pin)
Use Cases Gaming, general typing, office work
Noise Level Medium‑loud (HiFi‑tuned)
SMD LED Compatibility Fully compatible
Switch Technology BOX Structure (Cross Stem Upgrade)
Compatibility Works with any PCB compatible with Cherry‑style switches

💬 What the Community Says

⭐⭐⭐⭐⭐

"The Luna’s cross‑stem sound is amazing! Crisp and focused, nothing like the muffled wall‑stem switches. The stabilization platform makes it even more stable than I expected, and the RGB diffusion is top‑notch."

— @LunaExplorer
⭐⭐⭐⭐⭐

"First time experiencing a truly HiFi linear. The POK+POM self‑lubricating combo is incredibly smooth, and the 45gf weight is perfect for long sessions. The sound is as clean as moonlight."

— @MoonTypist
⭐⭐⭐⭐⭐

"The diamond‑cut light guide finally makes my RGB pop! And the gold contacts give me peace of mind—no double clicks after three months of heavy use. Luna lives up to its name."

— @RGBChaser

🛡️ Our Promise

Free worldwide shipping on orders over $80, 30‑day hassle‑free returns, and a 1‑year warranty. If the switches are incompatible with your keyboard, we'll cover return shipping.

📦

Fast Global Shipping

Orders ship within 24 hours, fully trackable

Shipping regions: USA, Canada, UK, Australia, Germany, France, Netherlands, Japan, South Korea, Singapore, Taiwan, Hong Kong, Switzerland, New Zealand & more.
🔄

30‑Day Easy Returns

Return for any reason; we’ll cover return shipping if compatibility is an issue

1‑year warranty covers manufacturing defects

Fast Processing

Orders are quality‑checked and shipped within 24 hours

Refunds processed within 4 weeks

❓ Frequently Asked Questions

What’s the difference between Luna’s cross stem and traditional dustproof BOX stems?
Traditional dustproof (wall) stems prioritize stability but often result in a muffled bottom‑out sound. Luna’s cross stem retains BOX durability while optimizing acoustics through central bottom‑out and chamber tuning, delivering a crisper, more focused, HiFi‑grade sound. Additionally, the upper‑stem stabilization platform actually surpasses traditional dustproof designs in stability.
Is 45gf too light for gaming?
45gf is the ideal balance between comfort and responsiveness—lighter than standard Reds (45–50gf) but with a high‑rebound spring for quick reset. It provides snappy actuation for FPS and MOBA games while reducing finger fatigue during long sessions.
Do I need to lube these switches?
No. Luna comes factory‑lubed with precision lubrication. The POK stem and POM housing are inherently self‑lubricating, so they’re smooth out of the box. If you prefer a custom sound signature, you can add a thin layer of lube, but it’s not required.
Will the 5‑pin design fit my 3‑pin hot‑swap board?
Yes. The two plastic positioning pins can be clipped off with flush cutters to convert to a 3‑pin switch, making it compatible with most 3‑pin hot‑swap PCBs.
How would you describe the sound?
The sound is focused, clean, and satisfying—bright highs without harshness, and a controlled low end. The bottom‑out is crisp, and the return is smooth. Many users describe it as “tapping on moon rock” or “like a finely tuned instrument.”
Is the 80M lifespan reliable?
Absolutely. Kailh’s gold‑contact technology combined with POM/POK wear‑resistant materials ensures consistent performance well beyond 80 million keystrokes. Lab tests show negligible degradation even after extended use.
