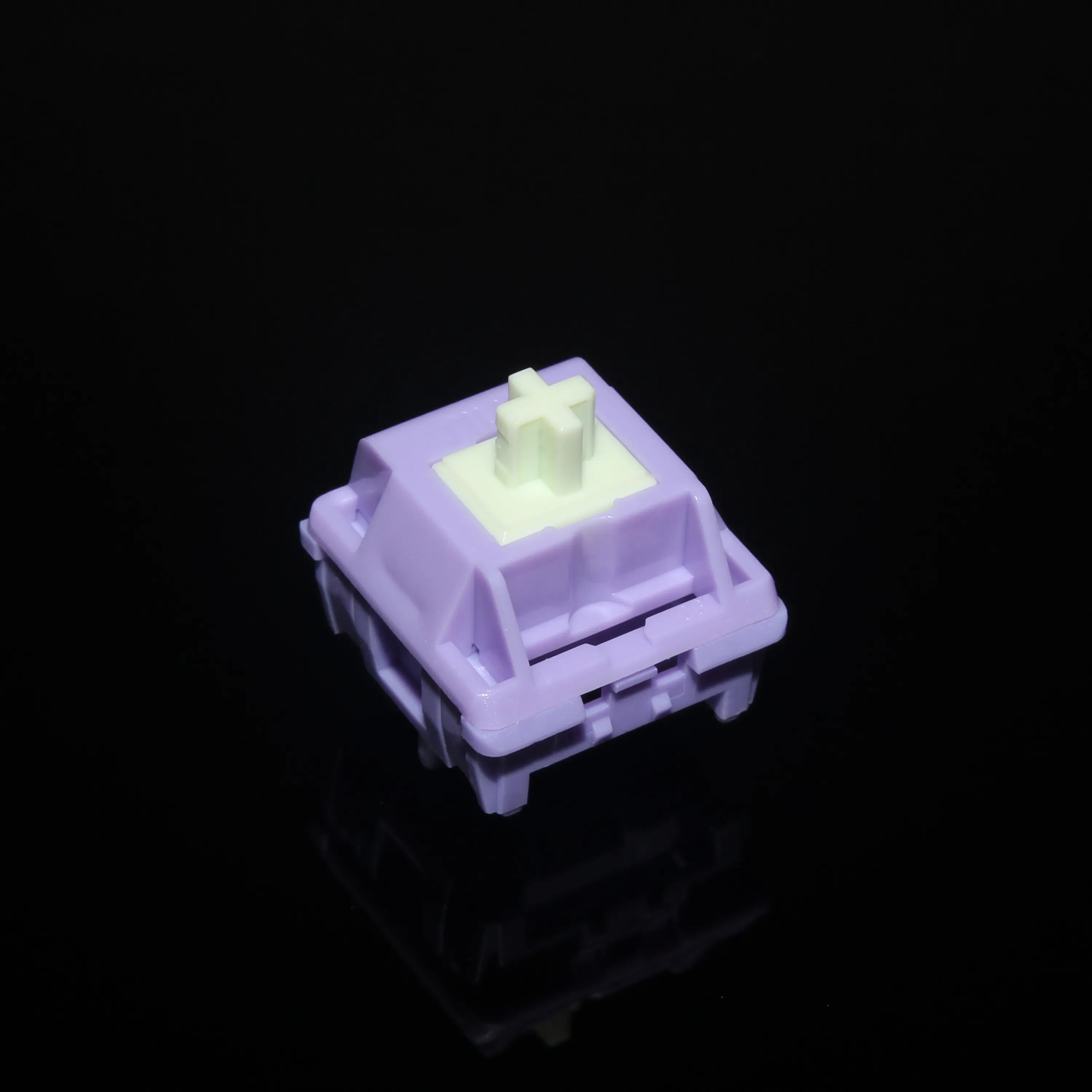

HMX Sillyworks Hyacinth V2 Linear Switches
$0.30
🌸 HMX Sillyworks · Hyacinth V2 Linear
HMX Sillyworks Hyacinth V2
Thocky Marble Sound · PC Top + Nylon Bottom · 45g
Ultra-precise HMX molds | Reduced stem wobble | Crisp acoustics | 5‑pin PCB mount
🌸 Thocky, Marble-Like Sound
⚡ 45g Operating Force
🧈 POM Stem
🏗️ PC Top + Modified Nylon Bottom
🔄 22mm Single‑Stage Spring
🔒 5‑Pin PCB Mount
45g
Operating Force
52g
Bottom-out Force
3.5mm
Total Travel
5‑Pin
Rock‑Solid Mount
Tired of linears that wobble or sound hollow?
Annoying Stem Wobble
Many budget linears suffer from loose tolerances, causing keycap rattle and inconsistent feel.
Hollow, Tinny Acoustics
Poor material choices result in cheap‑sounding bottom‑outs that ruin the typing experience.
Inconsistent Quality
Inferior molds lead to variance between switches, breaking the rhythm of your keyboard.
🌸 Hyacinth V2 – Precision Meets Acoustics — Upgraded from KTT to HMX’s ultra‑precise molds, reducing stem wobble and enhancing consistency. PC top amplifies deep tones, while nylon base dampens harshness, delivering a thocky, marble‑like sound that’s both satisfying and refined.
Why Hyacinth V2 Is the Precision Linear You Need
🎯 Rock‑Solid Stability
Ultra‑Precise HMX Molds – Say Goodbye to Wobble
Feature Upgraded from KTT tooling to HMX’s state‑of‑the‑art molds. The result is tighter tolerances between stem and housing, dramatically reducing stem wobble.
Advantage Every keystroke feels rock‑solid, with no keycap rattle or unpredictable movement. Consistency is guaranteed across the entire batch.
Benefit Whether you’re spamming WASD in a competitive game or drafting a novel, Hyacinth V2 provides unwavering stability and a frictionless press.
Evidence HMX is renowned for mold precision in the enthusiast community. V2 eliminates the quirks of V1, delivering a refined, predictable linear experience.
🔊 Thocky, Marble‑Like Sound
🏗️ PC Top (Amplifies Deep Tones)
🧱 Modified Nylon Bottom (Dampens Harshness)
🎶 Balanced Acoustics
🔊 Deep, Satisfying Acoustics
Thocky Marble Sound – The Best of Both Worlds
Feature PC top housing amplifies low‑frequency tones, producing a rich, deep thock. The modified nylon bottom absorbs harsh overtones, creating a clean, marble‑like bottom‑out.
Advantage You get a sound that’s both full and refined – no hollow echoes, no metallic pings. Perfect for those who want a linear that sounds as good as it feels.
Benefit Every keystroke delivers auditory satisfaction, making typing a pleasure and gaming more immersive. The sound is consistent across the whole keyboard.
Evidence Community reviews praise Hyacinth V2 for its “marble thock” – a signature sound that rivals switches twice its price.
⚙️ 22mm Single‑Stage Spring · 45g → 52g Force Curve
Smooth, predictable, and fatigue‑free🧈 Effortless Glide
45g Operating Force – Light Yet Controlled
Feature 45g actuation with a 22mm single‑stage spring, bottoming out at 52g. POM stem provides inherent self‑lubrication for a frictionless press.
Advantage The light starting force reduces finger fatigue, while the progressive resistance gives a satisfying, cushioned landing. No spring crunch or ping.
Benefit Ideal for long gaming sessions and extended typing. The smooth, linear travel keeps you in the zone without distraction.
Evidence HMX’s precision‑molded POM stem has been tested for 80 million cycles, ensuring years of buttery‑smooth performance.
🌸 Key Features
- Upgraded from KTT to HMX’s ultra-precise molds, reducing stem wobble and enhancing consistency.
- PC Top + Nylon Bottom: Balances crisp acoustics with structural durability.
- Thocky, Marble-Like Sound: PC top amplifies deep tones, while nylon base dampens harshness.
- POM stem for self‑lubricating smoothness and long‑term durability.
- 22mm single‑stage spring with 45g operating force, 52g bottom‑out.
✨ Why You'll Love It
- Thocky, Marble-Like Sound: PC top amplifies deep tones, while nylon base dampens harshness.
- By partnering with HMX—renowned for mold precision—this iteration eliminates the V1’s quirks, delivering rock-solid stability and a frictionless press. Designed for those who crave consistency, it’s a linear switch that feels as refined as it sounds, whether you’re spamming WASD or drafting novels.
- Consistent feel across all switches – no lottery.
- Factory lubed – ready to use out of the box.
🔌 Compatibility
Works with any PCB compatible with Cherry‑style switches. This 5‑pin (PCB mount) switch can be compatible with 3‑pin PCBs by clipping off the two extra pins. Fully compatible with SMD LEDs and through‑hole LEDs.
Key Specs at a Glance
Type
Linear
Linear
Operating Force
45 g
45 g
Bottom-out Force
52 g
52 g
Pre‑Travel
1.9 mm
1.9 mm
Total Travel
3.5 mm
3.5 mm
Spring
22mm Single‑Stage
22mm Single‑Stage
Stem Material
POM
POM
Top Housing
PC
PC
📋 Full Specifications
| Switch Type | Linear |
|---|---|
| Manufacturer | HMX |
| Stem Material | POM |
| Top Housing | PC |
| Bottom Housing | Modified Nylon |
| Operating Force | 45 g |
| Bottom-out Force | 52 g |
| Spring | 22 mm single-stage spring |
| Pre-travel | 1.9 mm |
| Total Travel | 3.5 mm |
| Factory Lubed | Yes (precision lubricated) |
| Pin Count | 5-pin (PCB mount) – can be clipped to 3-pin |
| SMD LED Compatibility | Fully compatible |
| Sound Profile | Thocky, marble‑like with deep lows |
| Compatibility | Works with any PCB compatible with Cherry‑style switches. This 5‑pin (PCB mount) switch can be clipped to 3‑pin if needed. |
💬 What the Community Says
⭐⭐⭐⭐⭐
"The Hyacinth V2 is everything I wanted in a linear – smooth, consistent, and that marble thock is addictive. No wobble, no scratch. HMX killed it."
— @LinearLover
⭐⭐⭐⭐⭐
"Upgraded from V1 and the difference is night and day. Tighter tolerances, deeper sound, and the 45g feel is perfect for long gaming sessions. Highly recommend."
— @KeebCrafter
⭐⭐⭐⭐⭐
"Finally a switch that sounds as good as it feels. The PC top and nylon bottom combo gives a rich thock without being overbearing. My new daily driver."
— @ThockEnthusiast
🛡️ Our Promise
Free worldwide shipping on orders over $80, 30‑day hassle‑free returns, and a 1‑year warranty. If the switches are incompatible with your keyboard, we'll cover return shipping.
Fast Global Shipping
Orders ship within 24 hours, fully trackable
Shipping regions: USA, Canada, UK, Australia, Germany, France, Netherlands, Japan, South Korea, Singapore, Taiwan, Hong Kong, Switzerland, New Zealand & more.
30‑Day Easy Returns
Return for any reason; we’ll cover return shipping if compatibility is an issue
1‑year warranty covers manufacturing defects
Fast Processing
Orders are quality‑checked and shipped within 24 hours
Refunds processed within 4 weeks
❓ Frequently Asked Questions
What’s the difference between Hyacinth V1 and V2?▼
Hyacinth V2 upgrades from KTT tooling to HMX’s ultra‑precise molds, resulting in tighter tolerances, reduced stem wobble, and improved consistency. The sound profile has also been refined with the PC top + nylon bottom combo, delivering a deeper, more marble‑like thock.
Is the sound really “marble‑like”?▼
Yes. The combination of a PC top (which amplifies low frequencies) and a modified nylon bottom (which dampens harsh overtones) creates a unique acoustic signature: a deep, rich thock with a clean, stone‑like quality. Many users describe it as “marble thock.”
Do I need to lube these switches?▼
No. Hyacinth V2 comes factory‑lubed with precision lubrication. The POM stem also offers inherent self‑lubrication, ensuring smoothness out of the box. Lubing is optional if you want to customize the sound further.
Will the 5‑pin design fit my 3‑pin hot‑swap board?▼
Yes. The two plastic positioning pins can be clipped off with flush cutters to convert to a 3‑pin switch, making it compatible with most 3‑pin hot‑swap PCBs.
What is the expected lifespan?▼
Hyacinth V2 is rated for 80 million keystrokes. The high‑quality POM stem and HMX’s precision manufacturing ensure consistent performance well beyond that mark.
How does the 45g force feel for typing?▼
45g is a popular weight that balances speed and comfort. It’s light enough to reduce fatigue during long sessions but with a 52g bottom‑out that prevents accidental presses. Great for both gaming and typing.
