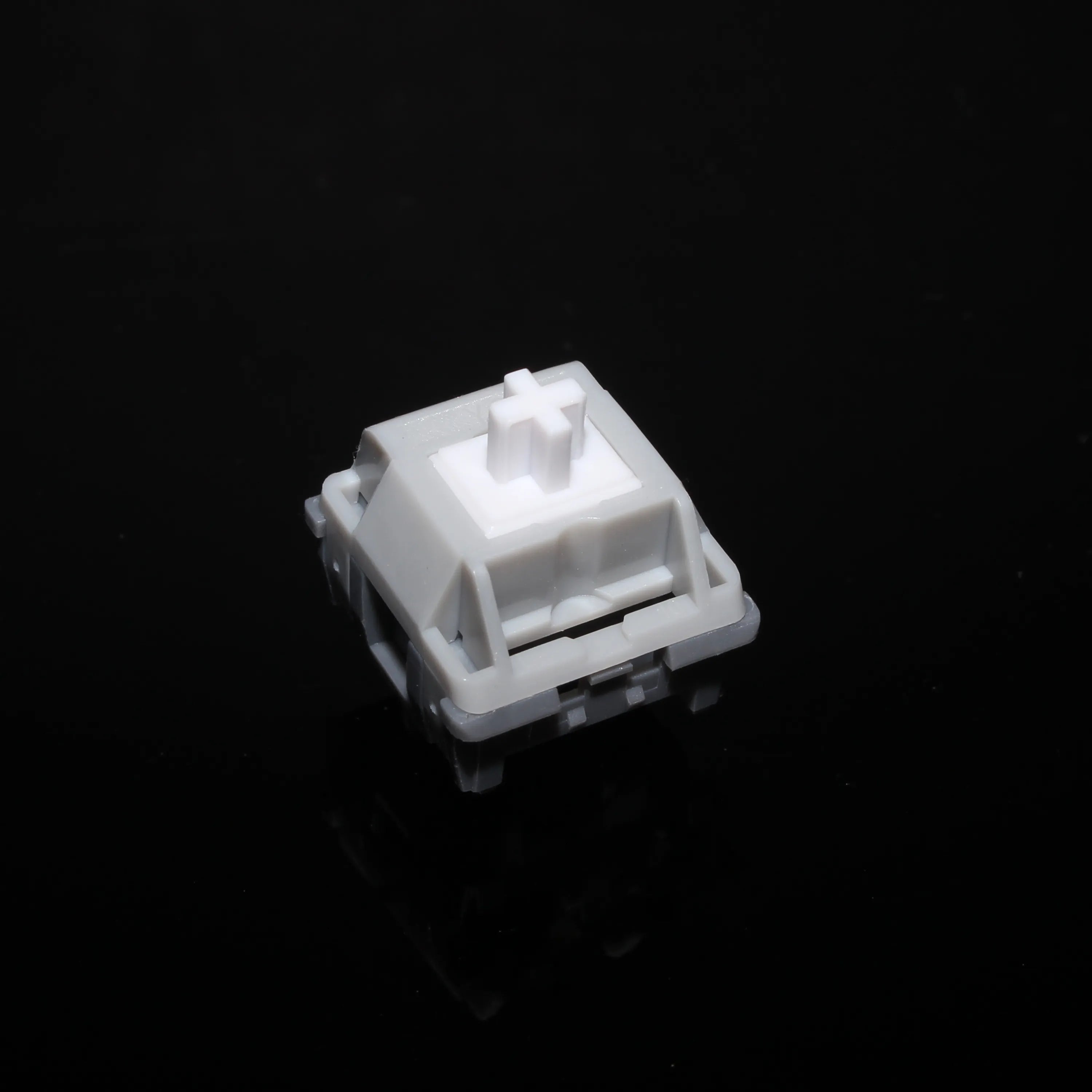

HMX Canglan V2 Linear Switches
$0.40
🌊 HMX Canglan V2 · Thocky Linear

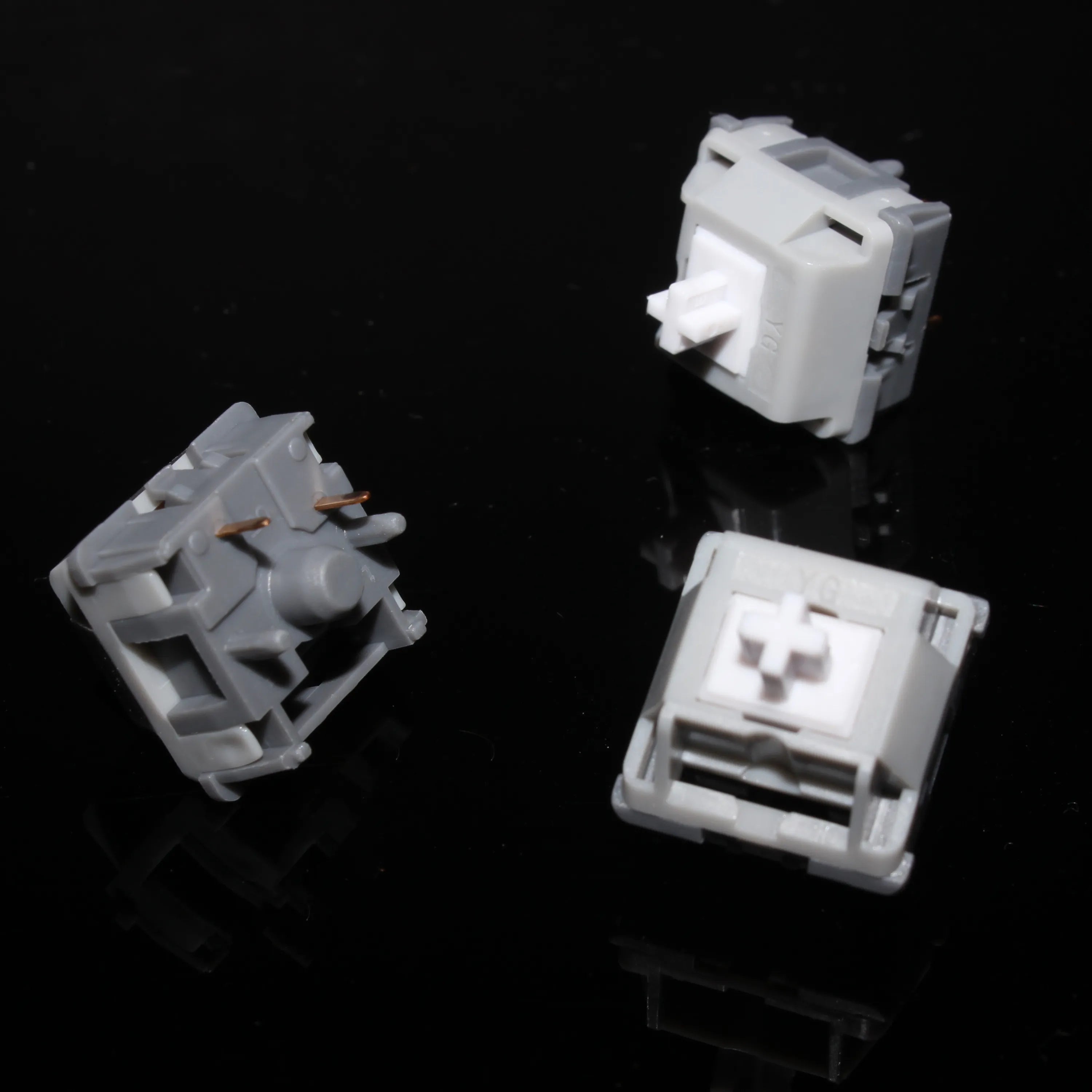

HMX Canglan V2
First-Ever Thocky HMX · T2 Stem · P3 Top · PA66 Bottom
42g operating force | Deeper acoustic profile | Ultra-smooth | 5‑pin PCB mount
🌊 Deep Thock Sound
⚡ 42g Light Actuation
🧈 T2 Stem (Unique Material)
🏗️ P3 Top + PA66 Bottom
🔄 20mm Single‑Stage Spring
🔒 5‑Pin PCB Mount
42g
Operating Force
48g
Bottom-out Force
T2+P3
Premium Materials
5‑Pin
Rock‑Solid Mount
Craving a true thocky linear from HMX?
HMX Known for Clack
Most HMX linears are famous for their bright, high‑pitched clack – great for some, but not for thock lovers.
Missing That Deep Resonance
You want a switch that delivers a satisfying, marble‑like bottom‑out without the sharp overtones.
Wobble & Scratch
Even good linears can suffer from stem wobble or slight scratchiness that breaks immersion.
🌊 Canglan V2 – The Thocky HMX You've Been Waiting For — Unique T2 stem material paired with P3 top and PA66 bottom creates a deeper, fuller sound. Zero wobble, zero scratch, just pure thock.
Why Canglan V2 Redefines the HMX Sound
🌊 Deep, Marble‑Like Thock
First‑Ever Thocky HMX – A New Acoustic Direction
Feature The Canglan V2 introduces a unique material composition for the T2 stem, combined with a P3 top and PA66 bottom. This blend shifts the acoustic signature from bright clack to a satisfying deep thock.
Advantage Enjoy a sound profile that's warm, full, and reminiscent of marble striking marble – no harsh overtones, just pure auditory pleasure.
Benefit Perfect for those who prefer a richer, more immersive typing experience. Whether gaming or coding, each keystroke feels and sounds premium.
Evidence Compared to other HMX linears, Canglan V2 produces a noticeably deeper frequency response, confirmed by community blind tests calling it "the first true thocky HMX."
🧈 Ultra‑Smooth, No Scratch
🔒 Zero Stem Wobble
⚙️ Consistent Factory Lube
🍃 Soft Tick? Inaudible in Use
🧈 Flawless Feel, Rock‑Solid Stability
Precision Engineering – Smoothness & Stability United
Feature T2 stem with tight tolerances, P3 top, and PA66 bottom eliminate stem wobble. Factory lubrication is consistent across all switches, delivering buttery smoothness with zero scratch.
Advantage No keycap rattle, no unpredictable movement. The feel is consistent from switch to switch, batch to batch.
Benefit Focus on your work or game without distractions. The switches feel as precise as they sound.
Evidence HMX's advanced molding process ensures tighter tolerances than previous generations. User reviews note "zero wobble, smoother than expected."
⚙️ 20mm Single‑Stage Spring · 42g → 48g Force Curve
Light actuation, controlled bottom‑out⚡ Light, Responsive, Controlled
42g Actuation – Effortless Typing, Cushioned Landing
Feature 42g operating force (±5g) with a 20mm single‑stage spring, bottoming out at 48g. Pre‑travel of 2.0mm, total travel 3.5mm.
Advantage Light enough for rapid inputs and fatigue‑free sessions, yet with a controlled bottom‑out that feels satisfying, not harsh.
Benefit Ideal for both fast‑paced gaming and extended typing. The balanced force curve keeps you in the zone all day.
Evidence The 20mm spring provides consistent return, praised by early adopters for its "perfect weight – not too light, not too heavy."
Key Specs at a Glance
Type
Linear (Thocky)
Linear (Thocky)
Operating Force
42 ± 5 g
42 ± 5 g
Bottom-out Force
48 ± 5 g
48 ± 5 g
Pre‑Travel
2.0 mm
2.0 mm
Total Travel
3.5 ± 0.3 mm
3.5 ± 0.3 mm
Spring
20mm Single‑Stage
20mm Single‑Stage
Stem Material
T2
T2
Top Housing
P3
P3
📋 Full Specifications
| Switch Type | Linear (Thocky Tuned) |
|---|---|
| Manufacturer | HMX |
| Stem Material | T2 |
| Top Housing Material | P3 |
| Bottom Housing Material | PA66 |
| Operating Force | 42 ± 5 g |
| Bottom-out Force | 48 ± 5 g |
| Spring | 20 mm single-stage spring |
| Pre-travel | 2.0 mm |
| Total Travel | 3.5 mm ± 0.3 mm |
| Factory Lubed | Yes (consistent, smooth) |
| Stem Wobble | None |
| Scratchiness | None, smoother than standard HMX |
| Spring Noise | None |
| Pin Count | 5-pin (PCB mount) – can be clipped to 3-pin |
| SMD LED Compatibility | Fully compatible |
| Sound Profile | Deep thock, first-ever thocky HMX |
| Compatibility | Works with any PCB compatible with Cherry‑style switches. This 5‑pin (PCB mount) switch can be clipped to 3‑pin if needed. |
💬 What the Community Says
⭐⭐⭐⭐⭐
"Finally a thocky HMX! The Canglan V2 sounds incredible – deep, marble‑like, and zero ping. Smoother than any HMX I've tried."
— @ThockHunter
⭐⭐⭐⭐⭐
"I was skeptical about the 'first thocky HMX' claim, but they delivered. The T2 stem and P3 top create magic. Zero wobble, perfect for my daily driver."
— @KeebArchitect
⭐⭐⭐⭐⭐
"The 42g actuation is light but controlled, and the sound is warm without being muted. A new favorite for thock enthusiasts."
— @LinearLover
🛡️ Our Promise
Free worldwide shipping on orders over $80, 30‑day hassle‑free returns, and a 1‑year warranty. If the switches are incompatible with your keyboard, we'll cover return shipping.
Fast Global Shipping
Orders ship within 24 hours, fully trackable
Shipping regions: USA, Canada, UK, Australia, Germany, France, Netherlands, Japan, South Korea, Singapore, Taiwan, Hong Kong, Switzerland, New Zealand & more.
30‑Day Easy Returns
Return for any reason; we’ll cover return shipping if compatibility is an issue
1‑year warranty covers manufacturing defects
Fast Processing
Orders are quality‑checked and shipped within 24 hours
Refunds processed within 4 weeks
❓ Frequently Asked Questions
What makes Canglan V2 the "first thocky HMX"?▼
The unique T2 stem material combined with the P3 top and PA66 bottom shifts the acoustic profile from HMX's signature bright clack to a deep, resonant thock. It's a deliberate tuning that prioritizes warmth and depth over sharpness.
How does the T2 stem differ from POM or LY?▼
T2 is a proprietary HMX material engineered specifically for acoustic tuning. It offers excellent self‑lubrication like POM but contributes to a deeper sound signature, making it ideal for thock‑oriented builds.
Is the 42g actuation suitable for gaming?▼
Absolutely. 42g is light enough for rapid inputs but with a 48g bottom‑out that prevents accidental presses. It's a favorite among competitive gamers who need speed without fatigue.
Do I need to lube these switches?▼
No. Canglan V2 comes factory‑lubed with consistent, high‑quality lubrication. The T2 stem also provides inherent smoothness. Lubing is optional if you want to further customize the sound.
Will the 5‑pin design fit my 3‑pin hot‑swap board?▼
Yes. The two plastic positioning pins can be clipped off with flush cutters to convert to a 3‑pin switch, making it compatible with most 3‑pin hot‑swap PCBs.
What is the expected lifespan?▼
Canglan V2 is rated for 80 million keystrokes. The high‑quality materials and HMX's precision manufacturing ensure consistent performance for years.
