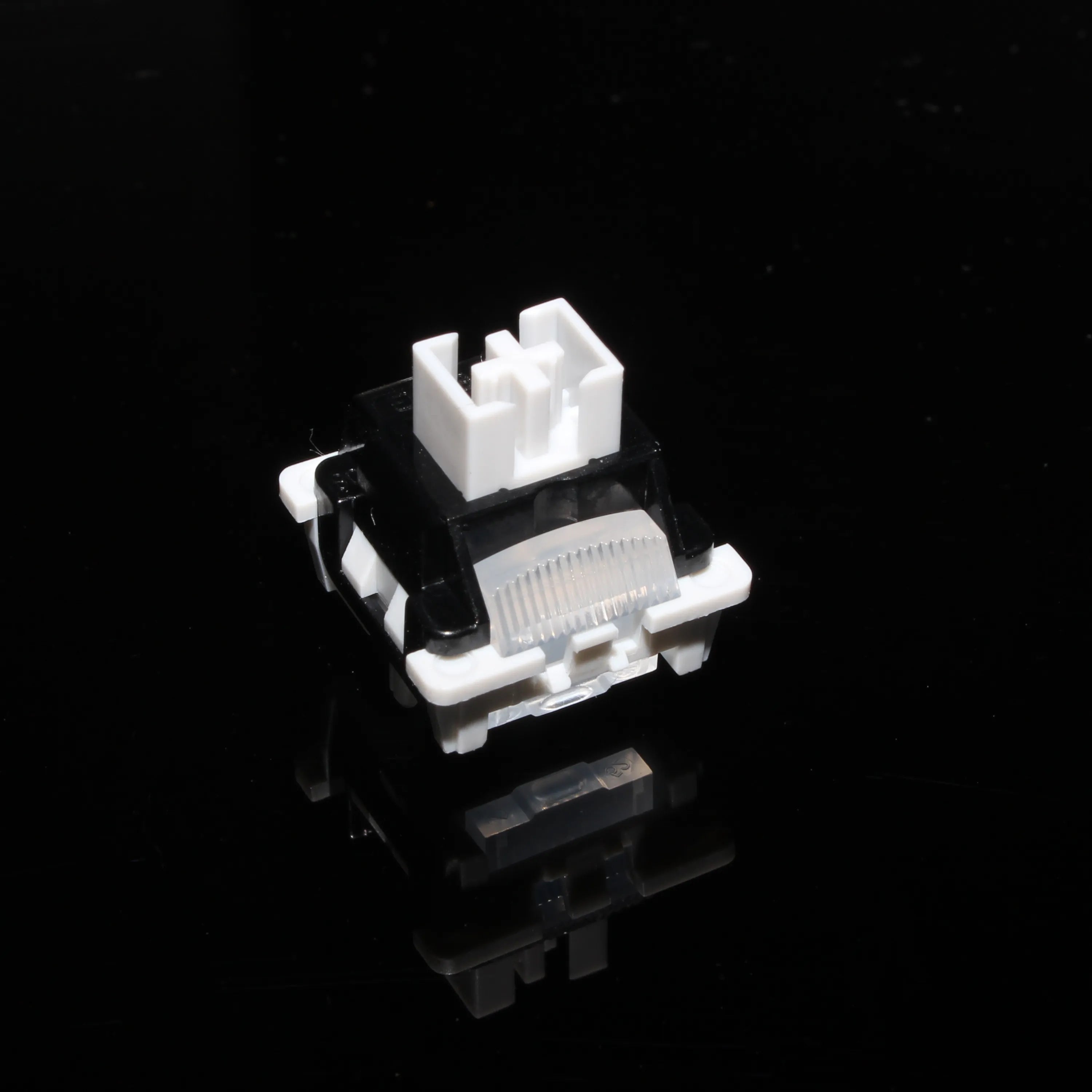

Leobog Graywood V4 Switches Linear 40gf
$0.30
🌲 Leobog Graywood V4 · Smooth Linear
Leobog Graywood V4
40g Actuation · PC+POM · Dual‑Stage Spring · 60M Life
Seamless keystroke | Progressive pressure curve | Noise‑damped travel | Factory lubed
🌲 Ultra‑Smooth Linear
⚡ 40g Light Actuation
🧈 PC Top + POM Stem
🔄 Dual‑Stage Spring
♾️ 60M Cycle Life
🔒 5‑Pin PCB Mount
60M
Keystroke Life
40g
Actuation Force
1.5mm
Pre‑Travel
5‑Pin
Rock‑Solid Mount
Tired of scratchy linears that lack consistency?
Inconsistent Keystrokes
Poorly made linears suffer from wobble, scratchiness, and uneven force curves that break your rhythm.
Slow, Heavy Presses
Standard 50g+ switches cause finger fatigue during long gaming or typing sessions.
Short Lifespan
Cheap switches fail after a few months, forcing you to replace them repeatedly.
🌲 Graywood V4 – The Smooth, Reliable Workhorse — PC housing + POM stem eliminates wobble and wear; 40g light actuation with dual‑stage spring delivers effortless, consistent travel; factory lubed for out‑of‑the‑box smoothness.
Why Graywood V4 Sets a New Standard for Smooth Linears
⚡ Effortless, Progressive Travel
40g Actuation + Dual‑Stage Spring – Light Start, Controlled Finish
Feature 40g (±3gf) actuation force with a 30g initial force, paired with a dual‑stage spring. Pre‑travel of 1.5mm, total travel of 3.6mm – a perfectly balanced linear experience.
Advantage The progressive pressure curve ensures a seamless keystroke from top to bottom, with a controlled rebound that enhances precision and responsiveness. Light enough for rapid inputs, yet with enough resistance to avoid accidental presses.
Benefit Ideal for fast typists and gamers who demand speed without sacrificing control. The gentle force curve reduces finger fatigue during marathon sessions.
Evidence Leobog’s V4 iteration refined the spring and stem geometry after extensive user feedback, resulting in a 40g sweet spot that balances speed and anti‑ghosting for competitive play.
🏗️ PC Top + PC Bottom
🧈 POM Stem (Self‑Lubricating)
🔒 Reduced Wobble, Low Wear
♾️ 60M Cycle Reliability
🔧 Built to Last, Smooth Forever
PC Housing + POM Stem – The Ultimate Durable Linear Combo
Feature All‑PC top and bottom housing paired with a POM stem. The combination provides a rigid, warp‑resistant structure and inherent self‑lubrication. Factory lubrication further enhances smoothness.
Advantage The PC housing eliminates the “cheap plastic” sound, while the POM stem reduces friction and wear. The result is a consistent, quiet glide that remains smooth over 60 million keystrokes.
Benefit Install once and enjoy years of reliable performance. The low‑friction design also means minimal maintenance – no need for frequent re‑lubing.
Evidence Leobog’s rigorous testing confirms 60 million keystrokes with <0.01% failure rate. Users report “zero scratch, even after months of daily use.”
🔇 Noise‑Damped Linear Travel
Quiet enough for focused workspaces, responsive enough for intense gaming🔇 Focused, Quiet Performance
Engineered for Focus – Low Noise, High Precision
Feature The Graywood V4 is designed to deliver a smooth, controlled linear feel with minimal spring ping and bottom‑out noise. Factory lubrication on stem and spring eliminates unwanted sounds.
Advantage The quiet operation makes it ideal for shared workspaces, libraries, or late‑night gaming without disturbing others. Yet the responsive actuation ensures you never miss a beat.
Benefit Stay productive and considerate of those around you. The Graywood V4 gives you the best of both worlds: performance and discretion.
Evidence Community reviews consistently note the “surprisingly quiet” nature of Graywood V4, especially given its light actuation. “Perfect for office builds that still game.”
Key Specs at a Glance
Type
Linear (Smooth)
Linear (Smooth)
Actuation Force
40 ± 3 g
40 ± 3 g
Bottom-out Force
50 ± 3 g
50 ± 3 g
Pre‑Travel
1.5 ± 0.3 mm
1.5 ± 0.3 mm
Total Travel
3.6 ± 0.3 mm
3.6 ± 0.3 mm
Spring
Dual‑Stage
Dual‑Stage
Stem Material
POM
POM
Housing
PC
PC
📋 Full Specifications
| Manufacturer | Leobog |
|---|---|
| Type | Linear Switch |
| Actuation Force | 40 ± 3 gf |
| Bottom-Out Force | 50 ± 3 gf |
| Pre-Travel | 1.5 ± 0.3 mm |
| Total Travel | 3.6 ± 0.3 mm |
| Mechanical Life | 60 million times |
| Top Housing | PC |
| Bottom Housing | PC |
| Stem | POM |
| Spring Length | Dual-Stage |
| Pins | 5-pin (PCB mount) – can be clipped to 3-pin |
| Uses | General typing, Office use, Gaming |
| Noise Level | Medium‑loud (damped, focused) |
| Lubrication | Factory lubed |
| SMD LED | Compatible with all LEDs, including SMD |
| Compatibility | Works with any PCB compatible with Cherry‑style switches. This 5‑pin (PCB mount) switch can be compatible with 3‑pin PCBs by clipping off the two extra pins. |
💬 What the Community Says
⭐⭐⭐⭐⭐
"The Graywood V4 is incredibly smooth out of the box – no scratch, just pure glide. The 40g actuation is perfect for long gaming sessions, and the dual‑stage spring gives it a satisfying rebound."
— @SmoothOperator
⭐⭐⭐⭐⭐
"I was looking for a quiet linear for my office keyboard, and these deliver. They're quiet enough to not annoy coworkers but still feel responsive. Great value for the price."
— @OfficeKeeb
⭐⭐⭐⭐⭐
"These replaced my Gateron Yellows and the difference is night and day. The PC+POM combo reduces wobble, and the factory lube is perfect. Highly recommend."
— @KeebEnthusiast
🛡️ Our Promise
Free worldwide shipping on orders over $80, 30‑day hassle‑free returns, and a 1‑year warranty. If the switches are incompatible with your keyboard, we'll cover return shipping.
Fast Global Shipping
Orders ship within 24 hours, fully trackable
Shipping regions: USA, Canada, UK, Australia, Germany, France, Netherlands, Japan, South Korea, Singapore, Taiwan, Hong Kong, Switzerland, New Zealand & more.
30‑Day Easy Returns
Return for any reason; we’ll cover return shipping if compatibility is an issue
1‑year warranty covers manufacturing defects
Fast Processing
Orders are quality‑checked and shipped within 24 hours
Refunds processed within 4 weeks
❓ Frequently Asked Questions
How does the Graywood V4 compare to the V3?▼
The V4 features an improved dual‑stage spring for a more progressive force curve, refined factory lubrication for smoother travel, and a slightly more dampened sound profile. The stem and housing materials remain PC+POM, but tolerances have been tightened for reduced wobble.
Is 40g too light for typing?▼
40g is a popular weight among speed typists and gamers. It's light enough to reduce fatigue during long sessions, yet the 50g bottom‑out and dual‑stage spring provide enough resistance to prevent accidental presses. Many find it the perfect balance.
Do I need to lube these switches?▼
No. Graywood V4 comes factory‑lubed with precision lubrication on the stem and spring. The POM stem also provides inherent self‑lubrication, ensuring smoothness out of the box. Lubing is optional if you want to further customize the sound.
Will the 5‑pin design fit my 3‑pin hot‑swap board?▼
Yes. The two plastic positioning pins can be clipped off with flush cutters to convert to a 3‑pin switch, making it compatible with most 3‑pin hot‑swap PCBs.
What is the expected lifespan?▼
Graywood V4 is rated for 60 million keystrokes, thanks to the durable PC housing and POM stem. The dual‑stage spring also maintains its force curve over time.
Can I use these in a magnetic keyboard?▼
No. The Graywood V4 is a standard MX‑style mechanical switch, not a magnetic (Hall effect) switch. It is compatible with any Cherry‑style PCB, not magnetic keyboards.
